| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q41F-DN100-300LB |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API6D | Body Material:: | CF8 |
|---|---|---|---|
| Nominal Diameter: | 4 Inch | Pressure: | CL300 |
| End Connection.: | FLANGE | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | 100mm stainless steel ball valve,100mm Cf8m Stainless Steel Ball Valve,CF3M ball valve |
||

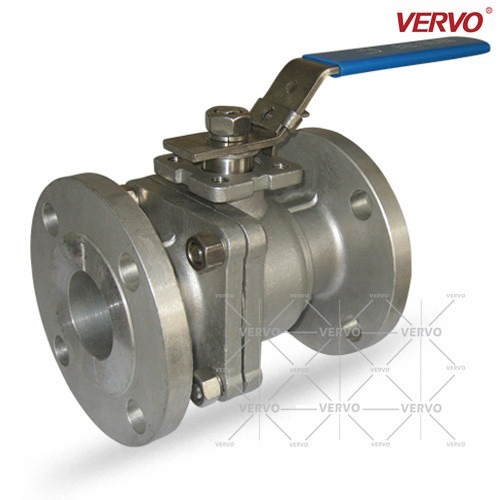

DN100 2pcs Ball Valve 100mm Cl300 RF CF8 WCB CF8M CF3M Stainless Steel Floating Ball Valve Side Entry Ball Valve
Quick Detail
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.
PRODUCT RANGE
Sizes NPS 2 to NPS 8
Class 150 to Class 2500
MATERIALS
Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted bonnet or welded body design
Anti-Static Device
Anti-Blow out Stem
Cryogenic or High Temperature, Extended Stem
DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Design standard
| Basic standard: | API 6D, ASME B16.34, BS5351, API 608, DIN3357-1,DIN3357-1,EN12516-1 |
| Flange connection dimesion: | ASME B16.5, B16.47A/B Series,MSS SP-44,EN1092-1 |
| Butt welding connection dimension: | ASME B16.25 |
| Face-to-face dimension: | ASME B16.10, API 6D, EN558 |
| Pressure-Temperature rating: | ASME B16.34 |
| Test: | API 6D, API 598, BS6364(according to customer’s requirements) |
Product range:
| Size: | 2" ~ 48",DN15-DN1200 |
| Rating: | ANSI 150lb-2500lbs,PN16-PN420 |
| Body Material: | A216 WCB / WCC, A352 LCB / LCC, A351 CF8 / CF8M / CF3/ CF3M, A890 4A / 5A / 6A, etc. |
| Trim: | A182 F304 / F316 / F51 / F53, Inconel 625 or customized per client’s requirements |
| Seat Material: | (R)PTFE, NYLON, PPL, DEVLON, PEEK, PCTFE etc. |
| Operation: | Wrench/Lever, Gear, Pneumatic operator |
To make a fast&successful offer to you(valued customers) , we need follow information.
1.Valve type
2.Bore
3.Size
4.Rating
5.connection
6.Operation
7.Body material
8.Trim material
9.Desgin standard
10.QTY
11.other special requirements
| ASME CLASS 300 (PN 50) FULL BORE | |||||||||||||||
| Size | D | D1 | L | Casting | Forging | Casting | Weight Forging | ||||||||
| in/mm | RF | RTJ | BW | A | B | B1 | W | A | B | B1 | W | (lb/kg) | (lb/kg) | ||
| ½ | 0.5 | 0.5 | 5.5 | 5.94 | 5.5 | 1.77 | 3.15 | 4.89 | 7.87 | 1.77 | 3.15 | 4.33 | 7.87 | 8 | 9 |
| 15 | 12.7 | 12.7 | 140 | 151 | 140 | 45 | 80 | 114 | 200 | 45 | 80 | 110 | 200 | 3.5 | 4 |
| ¾ | 0.75 | 0.75 | 5.98 | 6.61 | 6 | 1.97 | 3.47 | 5.31 | 7.87 | 1.97 | 3.35 | 5.11 | 7.87 | 9 | 13 |
| 20 | 19.1 | 19.1 | 152 | 168 | 152 | 50 | 85 | 135 | 200 | 50 | 85 | 130 | 200 | 4 | 6 |
| 1 | 1 | 1 | 6.5 | 7.13 | 6.5 | 2.16 | 3.54 | 6.3 | 7.87 | 2.16 | 3.54 | 6.1 | 7.87 | 12 | 18 |
| 25 | 25.4 | 25.4 | 165 | 181 | 165 | 55 | 90 | 160 | 200 | 55 | 90 | 155 | 200 | 5.3 | 8 |
| 1¼ | 1.25 | 1.25 | 7 | 7.64 | 7 | 2.36 | 4.33 | 6.70 | 9.84 | 2.36 | 4.33 | 6.5 | 9.84 | 21 | 3 |
| 32 | 31.8 | 31.8 | 178 | 194 | 178 | 60 | 110 | 170 | 250 | 60 | 110 | 165 | 250 | 9.5 | 13.5 |
| 1½ | 1.5 | 1.5 | 7.5 | 8.11 | 7.5 | 2.48 | 4.53 | 7.10 | 13 | 2.48 | 4.53 | 6.97 | 13 | 29 | 140 |
| 40 | 38.1 | 38.1 | 190 | 206 | 190 | 63 | 115 | 180 | 330 | 63 | 115 | 177 | 330 | 13 | 8 |
| 2 | 1.94 | 1.94 | 8.5 | 9.13 | 8.5 | 3 | 5.9 | 7.5 | 13 | 3 | 5.6 | 7.32 | 13 | 38 | 51 |
| 50 | 49 | 49 | 216 | 232 | 216 | 76 | 150 | 191 | 330 | 76 | 142 | 186 | 330 | 17 | 23 |
| 2½ | 2.44 | 2.44 | 9.5 | 10.12 | 9.5 | 3.45 | 6.1 | 7.83 | 13 | 3.45 | 5.9 | 7.67 | 13 | 55 | 62 |
| 65 | 62 | 62 | 241 | 257 | 241 | 85 | 155 | 200 | 330 | 85 | 150 | 195 | 330 | 25 | 28 |
| 3 | 2.91 | 2.91 | 11.1 | 11.73 | 11.1 | 3.74 | 6.3 | 8.46 | 22.05 | 3.74 | 6.1 | 8.1 | 22.05 | 77 | 93 |
| 80 | 74 | 74 | 282 | 298 | 282 | 95 | 160 | 215 | 560 | 95 | 155 | 206 | 560 | 35 | 42 |
| 4 | 3.94 | 3.94 | 12 | 12.64 | 12 | 4.33 | 8.27 | 10.04 | 22.05 | 4.33 | 7.67 | 9.5 | 22.05 | 117 | 148 |
| 100 | 100 | 100 | 305 | 321 | 305 | 110 | 210 | 255 | 560 | 110 | 195 | 242 | 560 | 53 | 67 |
| 6 | 5.91 | 5.91 | 15.87 | 16.5 | 15.87 | 6.70 | 12.2 | 12.87 | 31.8 | 6.70 | 11.22 | 12.44 | 31.8 | 249 | 331 |
| 150 | 150 | 150 | 403 | 419 | 403 | 170 | 310 | 327 | 800 | 170 | 285 | 316 | 800 | 113 | 150 |
| ASME CLASS 300 (PN 50) REDUCED BORE | |||||||||||||||
| Size | D | D1 | L | Casting | Forging | Casting | Weight Forging | ||||||||
| in/mm | RF | RTJ | BW | A | B | B1 | W | A | B | B1 | W | (lb/kg) | (lb/kg) | ||
| ½ | 0.5 | 0.375 | 4.25 | - | 4.25 | 1.77 | 3.15 | 4.89 | 7.87 | 1.77 | 3.15 | 4.33 | 7.87 | 7 | 9 |
| 15 | 12.7 | 9.5 | 108 | 108 | 45 | 80 | 114 | 200 | 45 | 80 | 110 | 200 | 3.3 | 4.2 | |
| ¾ | 0.75 | 0.5 | 4.62 | - | 4.62 | 1.97 | 3.15 | 4.89 | 7.87 | 1.97 | 3.35 | 5.11 | 7.87 | 8 | 11 |
| 20 | 19.1 | 12.7 | 117 | 117 | 50 | 80 | 114 | 200 | 50 | 85 | 130 | 200 | 3.8 | 5 | |
| 1 | 1 | 0.75 | 5 | 5.5 | 5 | 2.16 | 3.47 | 5.31 | 7.87 | 2.16 | 3.54 | 6.1 | 7.87 | 10 | 15 |
| 25 | 25.4 | 19.1 | 127 | 140 | 127 | 55 | 85 | 135 | 200 | 55 | 90 | 155 | 200 | 4.5 | 7 |
| ¼ | 1.25 | 1 | 5.5 | 6 | 5.5 | 2.36 | 3.54 | 6.3 | 7.87 | 2.36 | 4.33 | 6.5 | 9.84 | 17 | 20 |
| 32 | 31.8 | 25.4 | 140 | 153 | 140 | 60 | 90 | 160 | 200 | 60 | 110 | 165 | 250 | 7.5 | 9 |
| 1½ | 1.5 | 1.25 | 6.5 | 7 | 6.5 | 2.48 | 4.33 | 6.70 | 9.84 | 2.48 | 4.53 | 6.97 | 13 | 20 | 24 |
| 40 | 38.1 | 31.8 | 165 | 178 | 165 | 63 | 110 | 170 | 250 | 63 | 115 | 177 | 330 | 9 | 11 |
| 2 | 1.94 | 1.5 | 7 | 7.5 | 7 | 3 | 4.53 | 7.10 | 13 | 3 | 5.6 | 7.32 | 13 | 33 | 44 |
| 50 | 49 | 38.1 | 178 | 191 | 178 | 76 | 115 | 180 | 330 | 76 | 142 | 186 | 330 | 15 | 20 |
| 2½ | 2.44 | 1.94 | 7.5 | 8 | 7.5 | 3.45 | 5.9 | 7.5 | 13 | 3.45 | 5.9 | 7.67 | 13 | 51 | 55 |
| 65 | 62 | 49 | 191 | 203 | 191 | 85 | 150 | 191 | 330 | 85 | 150 | 195 | 330 | 23 | 25 |
| 3 | 2.91 | 1.94 | 8 | 8.5 | 8 | 3.74 | 6.1 | 7.83 | 13 | 3.74 | 6.1 | 8.1 | 13 | 71 | 77 |
| 80 | 74 | 49 | 203 | 216 | 203 | 95 | 155 | 200 | 330 | 95 | 155 | 206 | 330 | 32 | 35 |
| 4 | 3.94 | 2.91 | 9 | 9.5 | 9 | 4.33 | 6.3 | 8.46 | 13 | 4.33 | 7.67 | 9.5 | 18.11 | 106 | 128 |
| 100 | 100 | 74 | 229 | 242 | 229 | 110 | 160 | 215 | 330 | 110 | 195 | 242 | 460 | 48 | 58 |
| 6 | 5.91 | 3.94 | 15.5 | 16 | 15.5 | 6.70 | 8.27 | 10.04 | 18.11 | 6.70 | 11.22 | 12.44 | 30.3 | 187 | 238 |
| 150 | 150 | 100 | 394 | 407 | 394 | 170 | 210 | 255 | 460 | 170 | 285 | 316 | 770 | 85 | 108 |
| 8 | 8 | 5.91 | 18 | 18.5 | 18 | 6.73 | 12.2 | 12.87 | 30.3 | 6.73 | 11.22 | 12.44 | 30.3 | 297 | 419 |
| 201 | 201 | 150 | 457 | 470 | 457 | 175 | 310 | 327 | 770 | 175 | 285 | 316 | 770 | 135 | 190 |
| 1. The dimension and weights are for reference only and subject to change without notice. | |||||||||||||||
| 2. Contact sales representative if further information is needed. | |||||||||||||||
