DN100 2 Piece Ball Valve 4 Inch CL300 FF A216 WCB Flanged Ball Valves API6D Carbon Steel Material Floating Ball Type

Design standard

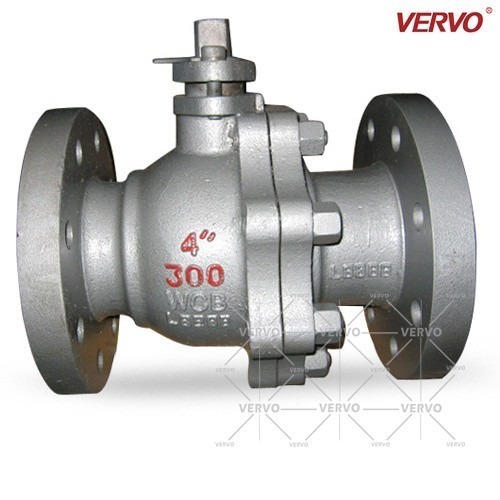

CL300 FF A216 WCB 4 Inch Flanged Ball Valve API 6D DN100 Carbon Steel 2 Piece 0

Basic standard:	API 6D, ASME B16.34, BS5351, API 608, DIN3357-1,DIN3357-1,EN12516-1
Flange connection dimesion:	ASME B16.5, B16.47A/B Series,MSS SP-44,EN1092-1
Butt welding connection dimension:	ASME B16.25
Face-to-face dimension:	ASME B16.10, API 6D, EN558
Pressure-Temperature rating:	ASME B16.34
Test:	API 6D, API 598, BS6364(according to customer’s requirements)

Product range:

Size:	2" ~ 48",DN15-DN1200
Rating:	ANSI 150lb-2500lbs,PN16-PN420
Body Material:	A216 WCB / WCC, A352 LCB / LCC, A351 CF8 / CF8M / CF3/ CF3M, A890 4A / 5A / 6A, etc.
Trim:	A182 F304 / F316 / F51 / F53, Inconel 625 or customized per client’s requirements
Seat Material:	(R)PTFE, NYLON, PPL, DEVLON, PEEK, PCTFE etc.
Operation:	Wrench/Lever, Gear, Pneumatic operator

To make a fast&successful offer to you(valued customers) , we need follow information.
1.Valve type
2.Bore
3.Size
4.Rating
5.connection
6.Operation
7.Body material
8.Trim material
9.Desgin standard
10.QTY

11.other special requirements

CL300 FF A216 WCB 4 Inch Flanged Ball Valve API 6D DN100 Carbon Steel 2 Piece 1

ASME CLASS 300 (PN 50) FULL BORE
Size	D	D1	L			Casting				Forging				Casting	Weight Forging
in/mm			RF	RTJ	BW	A	B	B1	W	A	B	B1	W	(lb/kg)	(lb/kg)
½	0.5	0.5	5.5	5.94	5.5	1.77	3.15	4.89	7.87	1.77	3.15	4.33	7.87	8	9
15	12.7	12.7	140	151	140	45	80	114	200	45	80	110	200	3.5	4
¾	0.75	0.75	5.98	6.61	6	1.97	3.47	5.31	7.87	1.97	3.35	5.11	7.87	9	13
20	19.1	19.1	152	168	152	50	85	135	200	50	85	130	200	4	6
1	1	1	6.5	7.13	6.5	2.16	3.54	6.3	7.87	2.16	3.54	6.1	7.87	12	18
25	25.4	25.4	165	181	165	55	90	160	200	55	90	155	200	5.3	8
1¼	1.25	1.25	7	7.64	7	2.36	4.33	6.70	9.84	2.36	4.33	6.5	9.84	21	3
32	31.8	31.8	178	194	178	60	110	170	250	60	110	165	250	9.5	13.5
1½	1.5	1.5	7.5	8.11	7.5	2.48	4.53	7.10	13	2.48	4.53	6.97	13	29	140
40	38.1	38.1	190	206	190	63	115	180	330	63	115	177	330	13	8
2	1.94	1.94	8.5	9.13	8.5	3	5.9	7.5	13	3	5.6	7.32	13	38	51
50	49	49	216	232	216	76	150	191	330	76	142	186	330	17	23
2½	2.44	2.44	9.5	10.12	9.5	3.45	6.1	7.83	13	3.45	5.9	7.67	13	55	62
65	62	62	241	257	241	85	155	200	330	85	150	195	330	25	28
3	2.91	2.91	11.1	11.73	11.1	3.74	6.3	8.46	22.05	3.74	6.1	8.1	22.05	77	93
80	74	74	282	298	282	95	160	215	560	95	155	206	560	35	42
4	3.94	3.94	12	12.64	12	4.33	8.27	10.04	22.05	4.33	7.67	9.5	22.05	117	148
100	100	100	305	321	305	110	210	255	560	110	195	242	560	53	67
6	5.91	5.91	15.87	16.5	15.87	6.70	12.2	12.87	31.8	6.70	11.22	12.44	31.8	249	331
150	150	150	403	419	403	170	310	327	800	170	285	316	800	113	150
ASME CLASS 300 (PN 50) REDUCED BORE
Size	D	D1	L			Casting				Forging				Casting	Weight Forging
in/mm			RF	RTJ	BW	A	B	B1	W	A	B	B1	W	(lb/kg)	(lb/kg)
½	0.5	0.375	4.25	-	4.25	1.77	3.15	4.89	7.87	1.77	3.15	4.33	7.87	7	9
15	12.7	9.5	108		108	45	80	114	200	45	80	110	200	3.3	4.2
¾	0.75	0.5	4.62	-	4.62	1.97	3.15	4.89	7.87	1.97	3.35	5.11	7.87	8	11
20	19.1	12.7	117		117	50	80	114	200	50	85	130	200	3.8	5
1	1	0.75	5	5.5	5	2.16	3.47	5.31	7.87	2.16	3.54	6.1	7.87	10	15
25	25.4	19.1	127	140	127	55	85	135	200	55	90	155	200	4.5	7
¼	1.25	1	5.5	6	5.5	2.36	3.54	6.3	7.87	2.36	4.33	6.5	9.84	17	20
32	31.8	25.4	140	153	140	60	90	160	200	60	110	165	250	7.5	9
1½	1.5	1.25	6.5	7	6.5	2.48	4.33	6.70	9.84	2.48	4.53	6.97	13	20	24
40	38.1	31.8	165	178	165	63	110	170	250	63	115	177	330	9	11
2	1.94	1.5	7	7.5	7	3	4.53	7.10	13	3	5.6	7.32	13	33	44
50	49	38.1	178	191	178	76	115	180	330	76	142	186	330	15	20
2½	2.44	1.94	7.5	8	7.5	3.45	5.9	7.5	13	3.45	5.9	7.67	13	51	55
65	62	49	191	203	191	85	150	191	330	85	150	195	330	23	25
3	2.91	1.94	8	8.5	8	3.74	6.1	7.83	13	3.74	6.1	8.1	13	71	77
80	74	49	203	216	203	95	155	200	330	95	155	206	330	32	35
4	3.94	2.91	9	9.5	9	4.33	6.3	8.46	13	4.33	7.67	9.5	18.11	106	128
100	100	74	229	242	229	110	160	215	330	110	195	242	460	48	58
6	5.91	3.94	15.5	16	15.5	6.70	8.27	10.04	18.11	6.70	11.22	12.44	30.3	187	238
150	150	100	394	407	394	170	210	255	460	170	285	316	770	85	108
8	8	5.91	18	18.5	18	6.73	12.2	12.87	30.3	6.73	11.22	12.44	30.3	297	419
201	201	150	457	470	457	175	310	327	770	175	285	316	770	135	190
1. The dimension and weights are for reference only and subject to change without notice.
2. Contact sales representative if further information is needed.

Keywords of DN100 2 Piece Ball Valve 4 Inch CL300 FF A216 WCB Flanged Ball Valves API6D Carbon Steel Material Floating Ball Type

CL300 FF A216 WCB 4 Inch Flanged Ball Valve API 6D DN100 Carbon Steel 2 Piece 2

DN100 Ball Valve,A216 WCB Ball Valve,2 Piece Ball Valve,Soft Seal Ball Valve,Two Piece Ball Valve,Casting steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,API 6D Ball Valve,Worm Operated Ball Valve,100MM Ball Valve,FF Flange Ball Valve

Tag:

Place of Origin:	LISHUI,ZHEJIANG
Brand Name:	VERVO
Certification:	API/ISO/CE
Model Number:	Q41F-DN100-300LB

Minimum Order Quantity:	1
Packaging Details:	plywood case
Delivery Time:	30
Payment Terms:	T/T, L/C, D/P, Western Union
Supply Ability:	400000

Design Standard:	API6D	Body Material::	A216 WCB
Nominal Diameter:	4 Inch	Pressure:	CL300
End Connection.:	FLANGE RF RTJ	Face To Face:	ASME B16.10
Test And Inspection:	API 598
High Light:	4 Inch Flanged Ball Valve DN100 , 4 Inch Flanged Ball Valve API 6D , CL300 ball valve
