| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | PSBJ61Y-1500LB-DN25 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Pressure Seal Bonnet Globe Valve | Media: | Oli,Gas,Water |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 | ||
| High Light: | SW Handwheel Industrial Globe Valve,Industrial Globe Valve 1 Inch Dn25,dn25 globe valves |
||

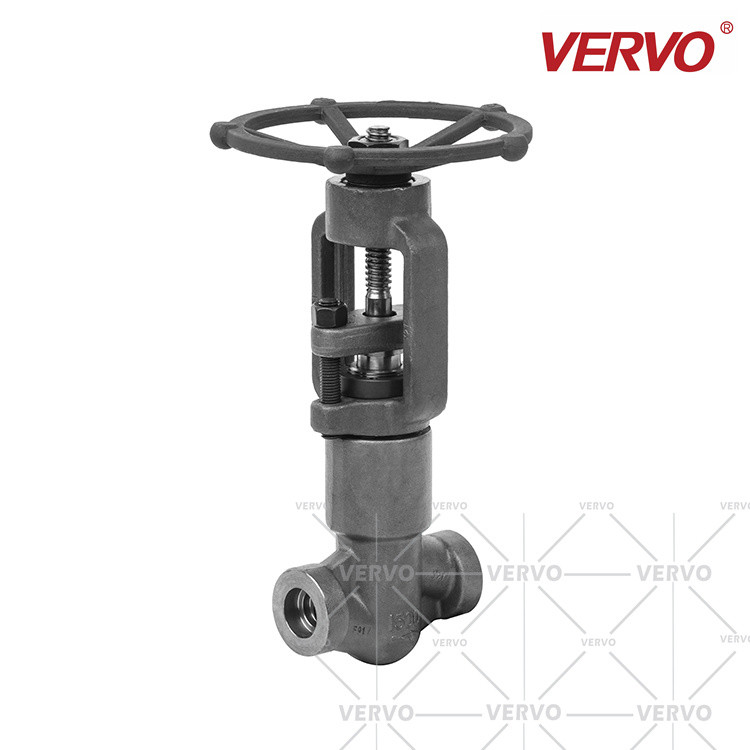

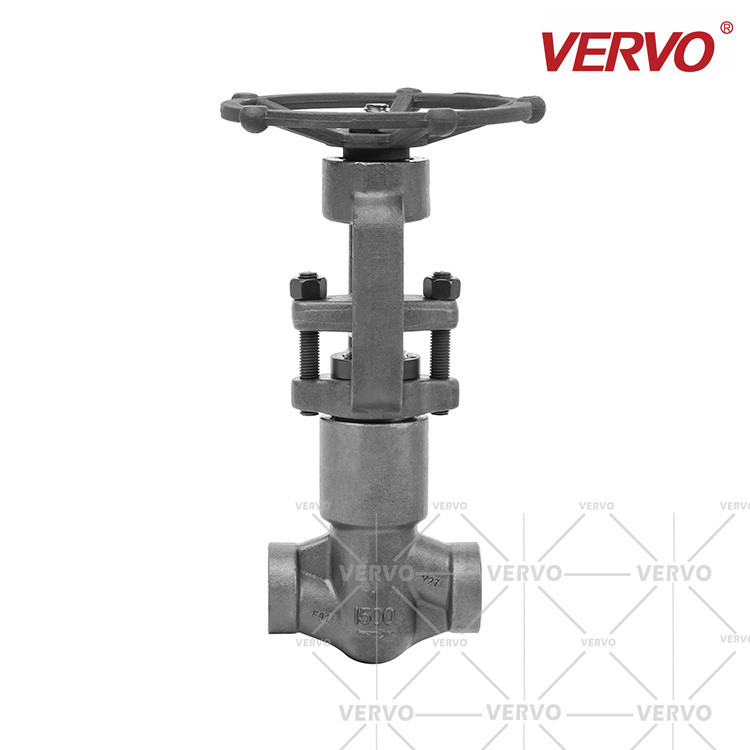

High Pressure globe Valve Forged Steel A105n 1 Inch Dn25 1500lb PSB Pressure Seal Bonnet Globe Valve SW Handwheel
Forged Steel Globe Valves
VERVO forged steel globe valves are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint ,spiral wound gasket, made in F304/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Globe valve Design construction and Specification.
VERVO globe valve conform to API602, BS5352 and ASME B16.34. Each are tested according to API598, and marking is per MSS SP-25.
SPECIFICATIONS
1) Valve Size : 1/2" ~ 6"
2) Applicable Rating : ASME 1500# ~ 2500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
• End Connection : Socket-Welded or Flanged Type
• PSB (=Pressure-Seal Bonnet) Type
• Full Bore
• Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
Quick Detail
| Model number | PSBJ61Y-1500LB-DN25 |
| Item | PSB Globe Valve |
| Certification | ISO9001,ISO14001,ISO18001,CE,TS |
| Connection form | Socket welding/SW |
| Body material | Stainless Steel |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
PSB GLOBE VALVE DIMENSION
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
||||||||
| Size (NPS) | F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L | 140 | 140 | 140 | 140 | 178 | 178 | 216 |
| CL2500 | 182 | 182 | 182 | 182 | 232 | 232 | 272 | ||
| Handwheel Diameter | CL900 CL1500 CL2500 | W | 160 | 160 | 160 | 160 | 180 | 180 | 200 |
| Height | CL900 CL1500 | H | 325 | 325 | 325 | 325 | 430 | 430 | 495 |
| CL2500 | 330 | 330 | 330 | 330 | 480 | 480 | 530 | ||
| Flow Port Diameter | d | 8 | 13.5 | 17 | 22 | 28 | 34 | 42 | |
| Weight (Kg) | CL900 CL1500 | PSB | 9 | 9 | 8.9 | 8.8 | 26 | 25.6 | 45 |
| CL2500 | 12.3 | 12.3 | 11.6 | 11 | 26 | 28.4 | 60 | ||
 |
|||||||||
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
||||||||
| Size (NPS) | F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L (RF) | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL2500 | 264 | 273 | 308 | 349 | 384 | 451 | |||
| Handwheel Diameter | CL900 CL1500 CL2500 | W | 160 | 160 | 160 | 180 | 180 | 200 | |
| Height | CL900 CL1500 | H | 325 | 325 | 325 | 430 | 430 | 495 | |
| CL2500 | 330 | 330 | 330 | 480 | 480 | 530 | |||
| Flow Port Diameter | d | 13.5 | 17 | 22 | 28 | 34 | 42 | ||
| Weight (Kg) | CL900 CL1500 | PSB | 11.9 | 13.7 | 18 | 36.8 | 37 | 45 | |
| CL2500 | 13 | 17 | 22 | 30 | 42 | 58 | |||
| The dimension and weights are for reference only and subject to change without notice. | |||||||||
| 3. The flanged valve are defaulted by integral flange; | |||||||||
| 4. For more size or dimensional information, please contact our sales representative. | |||||||||
