| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | J41Y-900LB-DN25 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Globe Valve | Media: | Oli,Gas,Water |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 | ||
| High Light: | bs 5352 Industrial Globe Valve,Industrial globe valve 1 inch 25 mm,bs 5352 globe valve |
||

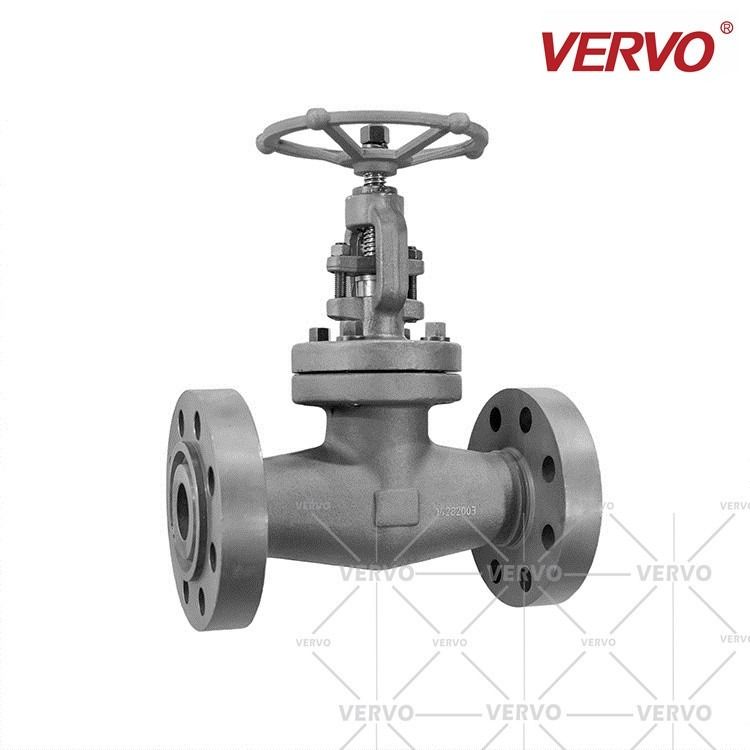

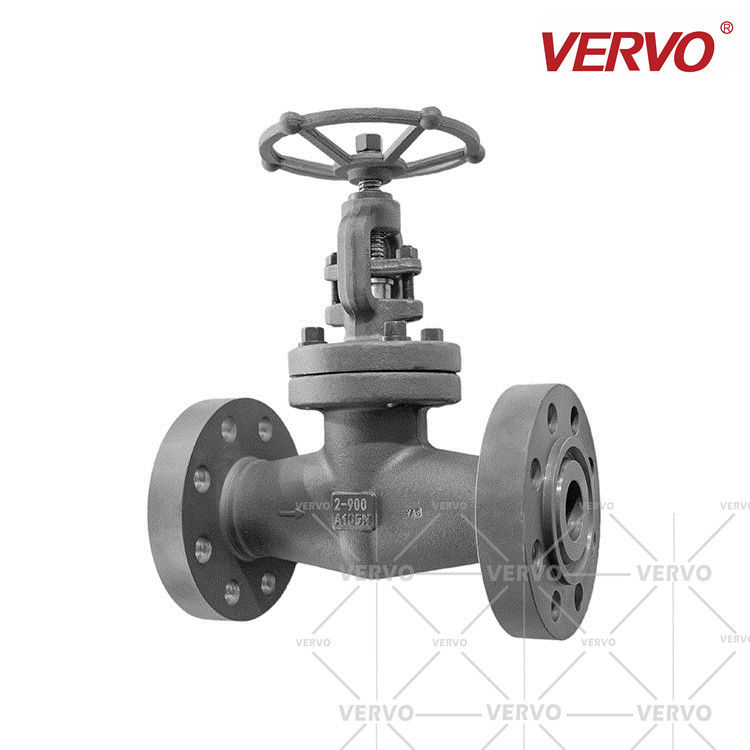

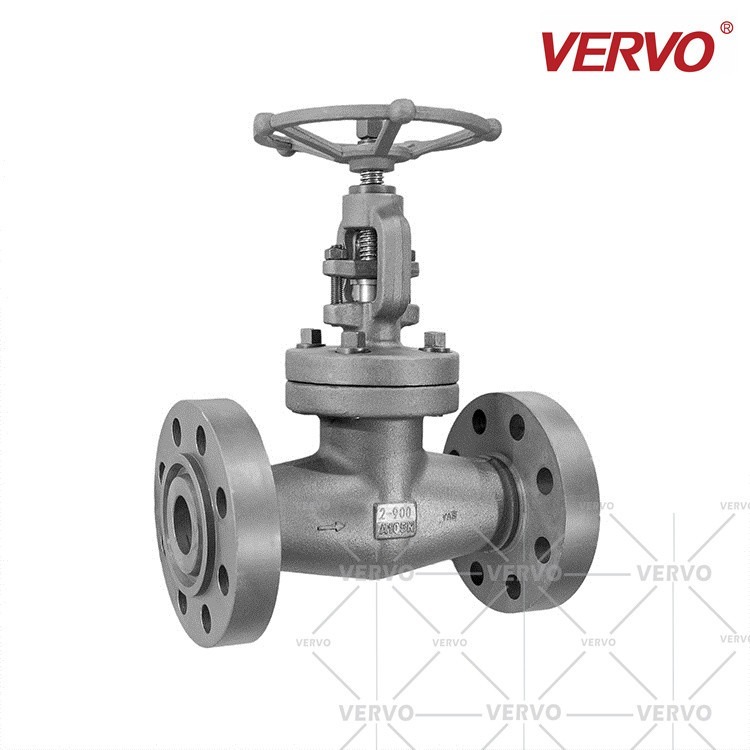

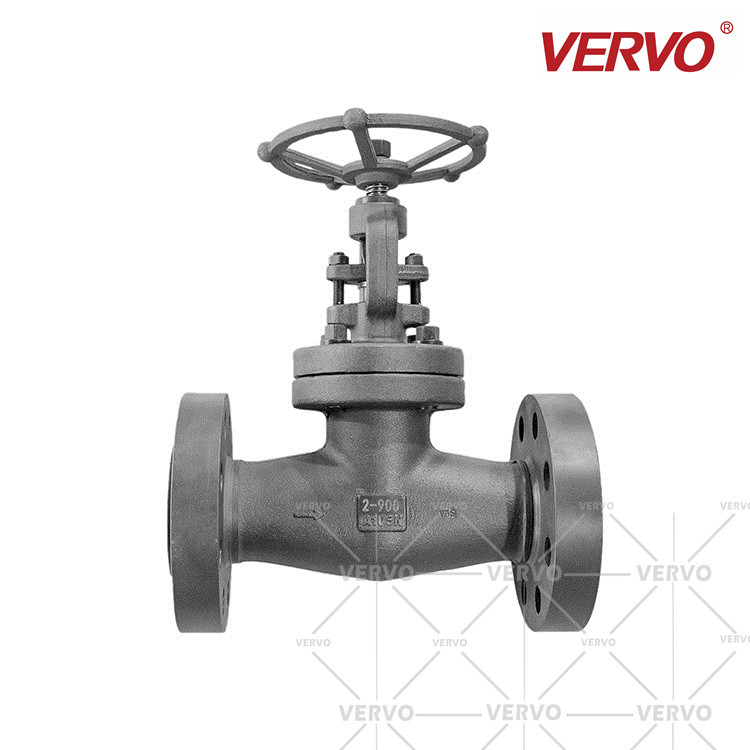

Globe Valve 1 Inch Globe Valves For Flow Control 1 Inch Globe Valve 900lb Rf Flange Bolted Bonnet Outside Screw
VERVO Forged Steel Globe Valve Flanged is suitable for process industries and applications where the isolation of steam, gas or liquid is required; media including air, gas, oil, steam and water.
A maintenance free valve - design to API602, BS5354.
 |
||||||||
| CL150~CL600 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 203 |
| CL300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 12.7 | 21 |
| CL300 | 4.8 | 6.7 | 10 | 14.5 | 18.3 | 25.2 | ||
| CL600 | 5.4 | 7.4 | 11 | 16 | 19.2 | 28.8 | ||
 |
||||||||
| CL900~CL1500 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 |
| CL1500 | ||||||||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | CL900 | B.B | 10.1 | 13 | 18.3 | 26 | 32.8 | 54 |
| CL1500 | ||||||||
