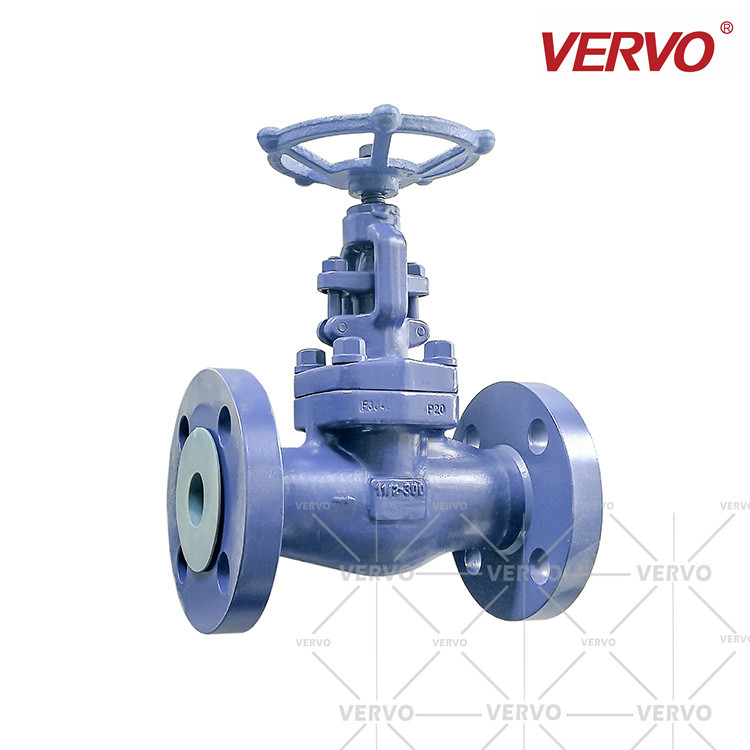

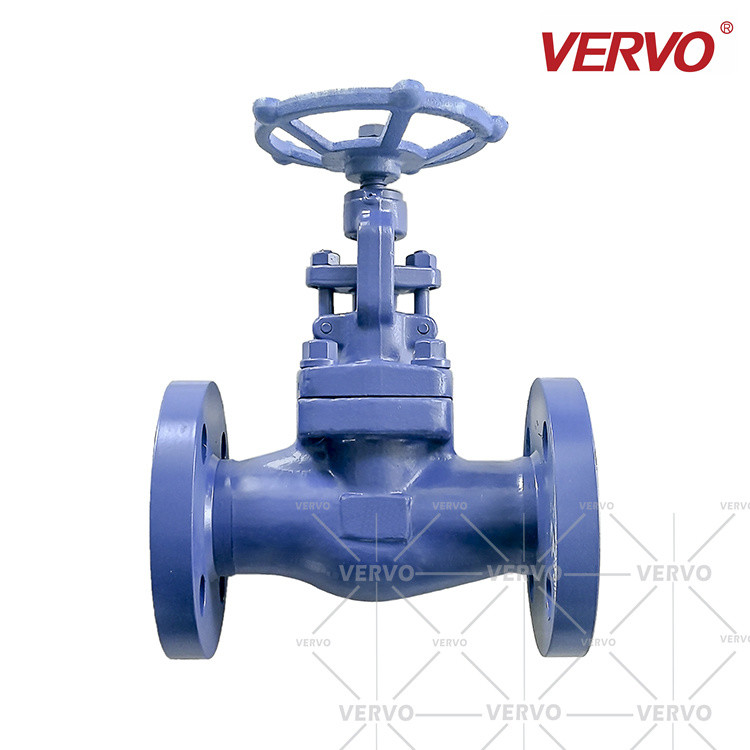

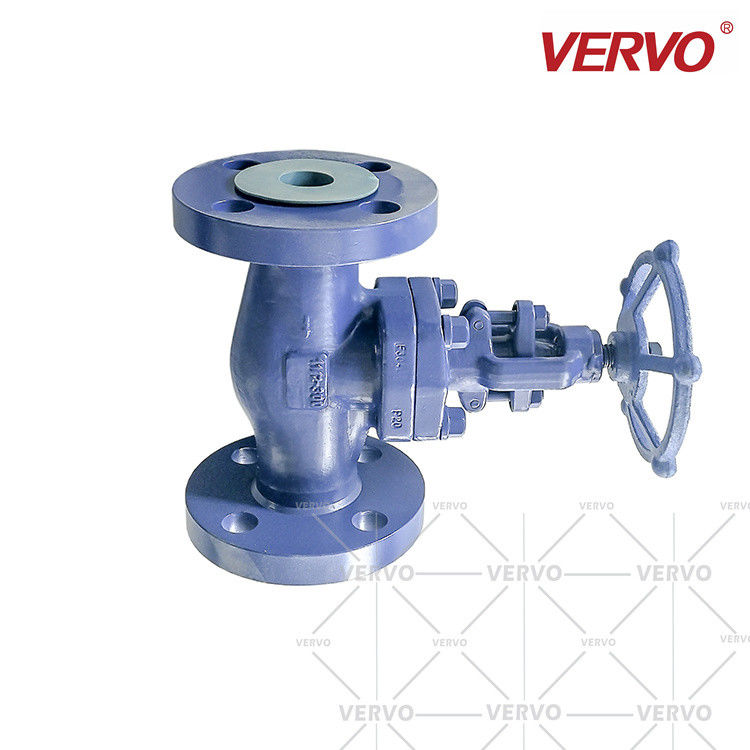

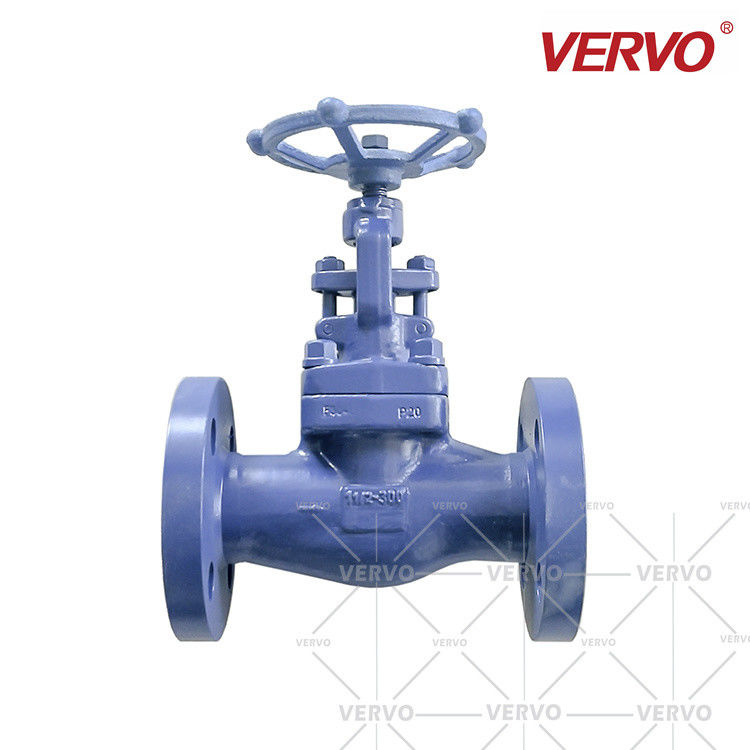

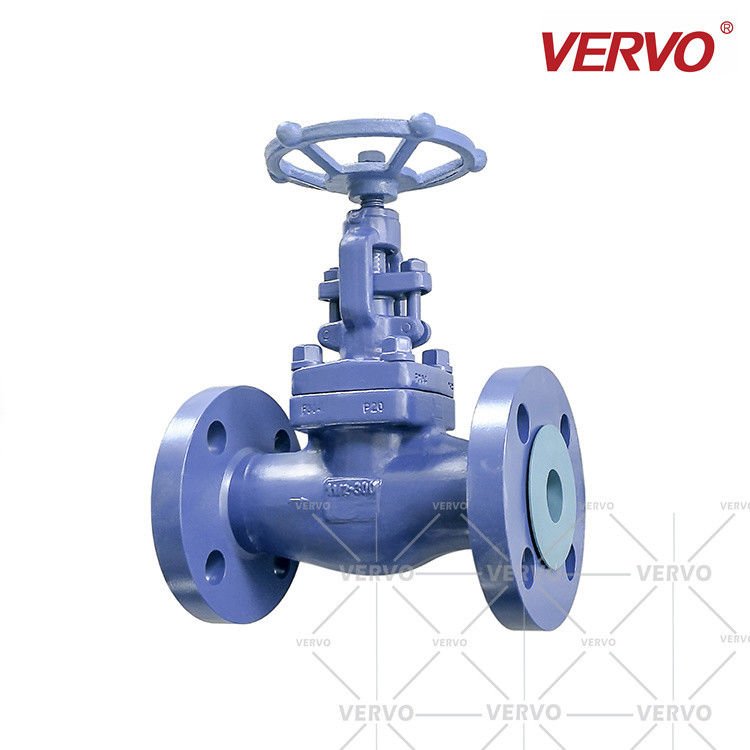

2 Inch Stainless Steel Globe Valve For Flow Control F304 Dn50 300 Lb Industrial Globe Valve

Globe Valves For Flow Control 2 Inch Globe Valve Stainless Globe Valve F304 Dn50 300 Lb Stainless Globe Valve

VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.

PRODUCT RANGE

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500

MATERIALS

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

DESIGN FEATURES

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

DESIGN STANDARD

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

CL150~CL600	Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL150	L (RF)	108	117	127	140	165	203
	CL300		152	178	203	216	229	267
	CL600		165	190	216	229	241	292
Handwheel Diameter		W	100	100	125	160	160	180
Height		H	170	172	207	228	270	320
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL150	B.B	4.1	4.8	7.1	10	12.7	21
	CL300		4.8	6.7	10	14.5	18.3	25.2
	CL600		5.4	7.4	11	16	19.2	28.8
CL900~CL1500	Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL900	L (RF)	216	229	254	279	305	368
	CL1500
Handwheel Diameter		W	100	100	125	160	160	180
Height		H	170	172	207	228	270	320
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL900	B.B	10.1	13	18.3	26	32.8	54
	CL1500

The dimension and weights are for reference only and subject to change without notice.

1. For more size or dimensional information, please contact our sales representative.
