| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z41Y-300LB-DN100 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Casting Steel Stainless Steel RF Flange Gate Valve | Connection: | RF Flange,RTJ Flange,Butt Welding |
|---|---|---|---|
| Standard: | API600/API603/ASME B16.34 | Pressure: | 150LB-900LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 2"-48",DN50-DN1200 | ||
| High Light: | 4 Inch Cast Steel Gate Valve Class 300,Class 300 Flanged Gate Valve Dn100,4 inch cast iron gate valve |
||

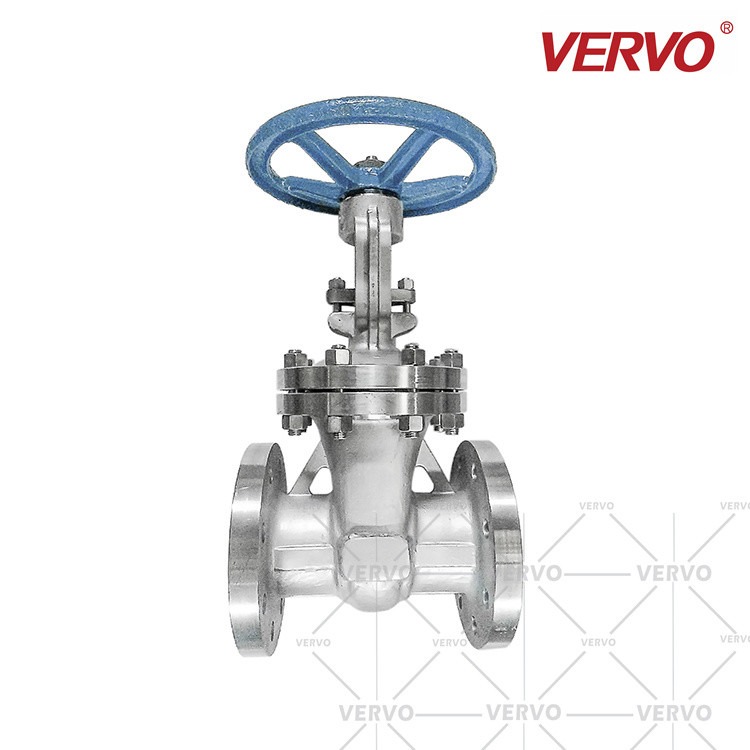

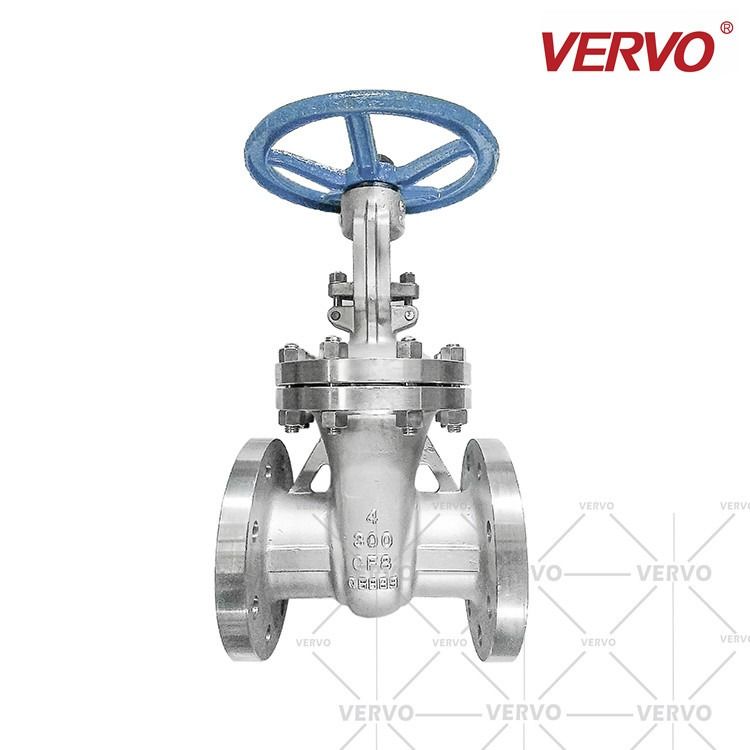

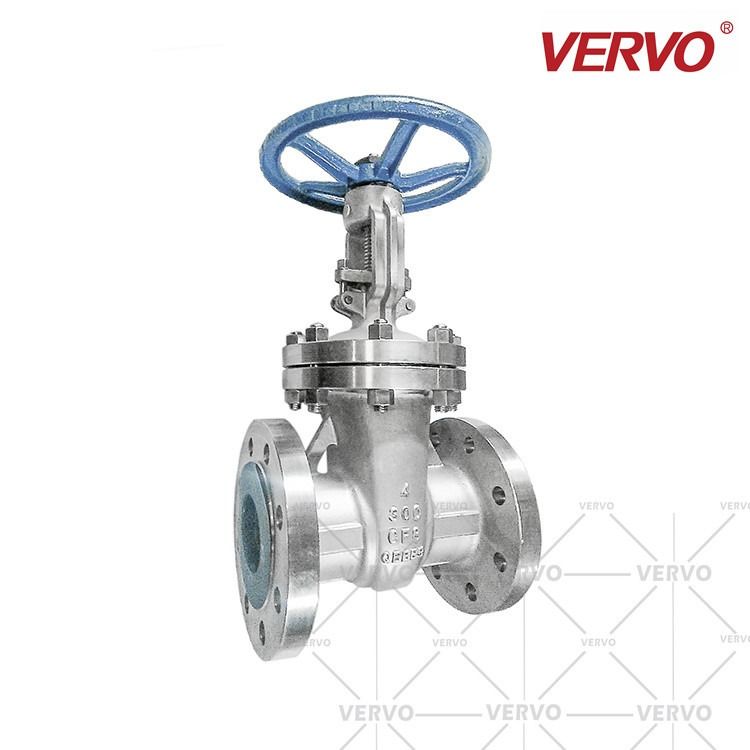

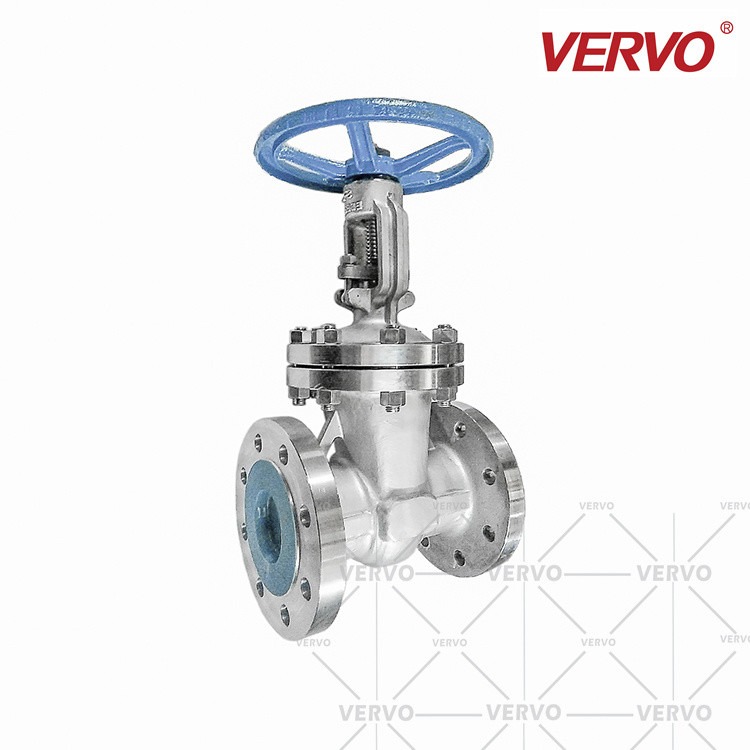

Full Port Gate Valve Cast Steel CF8 4 Inch Gate Valve API600 DN100 300LB Rf Flanged Bolted Bonnet Gate Valve ISO 9001
General Introduction
VERVO Cast gate valves are offered by default with flexible gate, renewable seat, rising stem and non-rising hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.
Bolted bonnet, pressure bonnet, bellow seal bonnet,high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.
Forged body can also be provided upon special request.
About Cast Steel Gate Valves
Unlike forging, casting uses the liquid form of metal to create valves. These metals are melted into a molten liquid and poured into various molds. One of the biggest benefits of casting is that it can create valves with complex shapes, patterns, and sizes. Using a mold to manufacture these devices gives you more freedom to make different types valves with more intricate parts.
VERVO OS&Y gate valves are specifically design to industry standards for straight thru, bi-directional flow which results in low flow loss and low pressure drop. They are designed for applications where excellent flow conditions and tight shut-off are necessary. Our gate valves proudly service the oil/gas refining, pulp and paper, power generation and chemical/petrochemical industries worldwide.
We offer both Cast API 600 and Forged API 602 Gate valve designs in a wide range of sizes, pressure classes and materials to fit even the most unique and rugged applications on the planet!
Design of Disc
Design of Body -Bonnet Connection
Bolted bonnet is normally applied on CL150~CL900, body seal is defaulted by gasket and RTJ ring. Pressure seal bonnet is applied on CL1500~CL2500 with pressure seal ring for body seal.
|
ASME CLASS 300 (PN 50) |
|||||||
|
Size |
D |
L |
H |
W |
Weight |
||
|
in/mm |
RF |
RTJ |
BW |
(lb/kg) |
|||
|
2 |
2 |
8.5 |
9.13 |
8.5 |
17.05 |
7.87 |
51/37 |
|
2 ½ |
2.5 |
9.5 |
10.12 |
9.5 |
18.54 |
7.87 |
77/57 |
|
3 |
3 |
11.1 |
11.73 |
11.1 |
21.06 |
9.84 |
110/86 |
|
4 |
4 |
12 |
12.64 |
12 |
24.7 |
11 |
156/117 |
|
5 |
5 |
15 |
15.63 |
15 |
28.15 |
11.81 |
256/200 |
|
6 |
6 |
15.87 |
16.5 |
15.87 |
32.44 |
13.78 |
317/249 |
|
8 |
8 |
16.5 |
17.13 |
16.5 |
39.53 |
15.75 |
460/361 |
|
10 |
10 |
18 |
18.62 |
18 |
49.61 |
17.72 |
709/564 |
|
12 |
12 |
19.76 |
20.39 |
19.76 |
58.27 |
19.7 |
1062/859 |
|
14 |
14 |
30 |
30.63 |
30 |
63.19 |
- |
1504/1244 |
|
16 |
15.24 |
33 |
33.62 |
33 |
71.06 |
- |
2093/1773 |
|
18 |
17 |
36 |
36.61 |
36 |
78.54 |
- |
2522/2126 |
|
20 |
19 |
39 |
39.76 |
39 |
94.69 |
- |
3601/3106 |
|
22 |
21.8 |
43 |
43.86 |
43 |
100.4 |
- |
5176/4626 |
|
24 |
23 |
45 |
45.87 |
45 |
104.33 |
- |
5859/5077 |
|
26 |
25 |
49 |
50 |
49 |
116.14 |
- |
6806/5595 |
|
28 |
27 |
53 |
54 |
53 |
122.05 |
- |
7291/6002 |
|
30 |
29 |
55 |
56 |
55 |
126 |
- |
7919/6729 |
|
The dimension and weights are for reference only and subject to change without notice. 1. For more dimensional information, please contact our sales representative. 2. “W” on above schematic is the diameter for hand wheel, the one without dimension on the table above is defaulted by gear operation. |
|||||||
About Us
VERVO is an ISO 9001 certified company specializing in manufacturing industrial valves including ball valves, gate valves, globe valves, check valves, plug valves and butterfly valves in carbon steel, stainless steel, duplex stainless and alloy materials. Our products conform to the latest industry standards in accordance to ANSI, ASME and API.VERVO today has over 10000 square meters of manufacturing facilities. Through its conviction to provide only the finest quality products and services to match the need of our customers, VERVO has now established itself as a serious player in the valve business.
VERVO has sold worldwide in North America, Europe, South America, South Asia, Africa and the Middle East. We consider product quality and customer satisfaction as our highest priority.
We look forward to new customer relationships by providing value, quality, customer service,honesty, integrity and the commitment to maintain product consistency with each and every order.
