| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z41Y-1500LB-DN25 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Welding Flange Gate Valve | Connection: | Socket Weld,RF Flange,FNPT |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 |

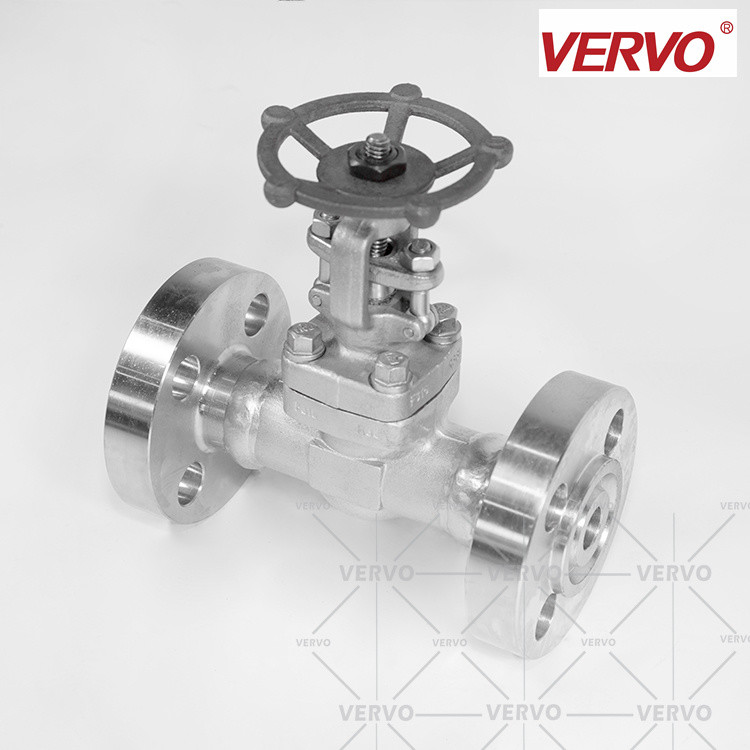

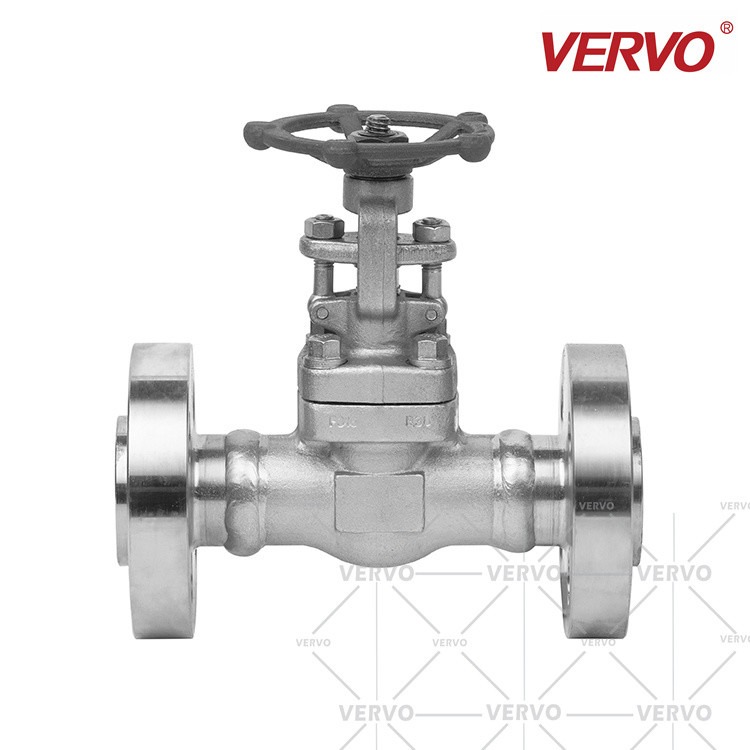

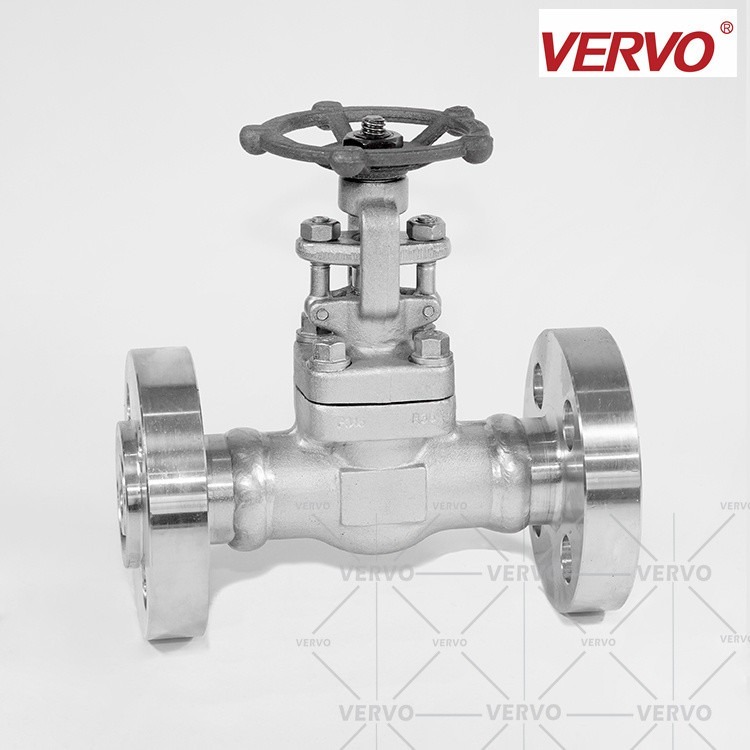

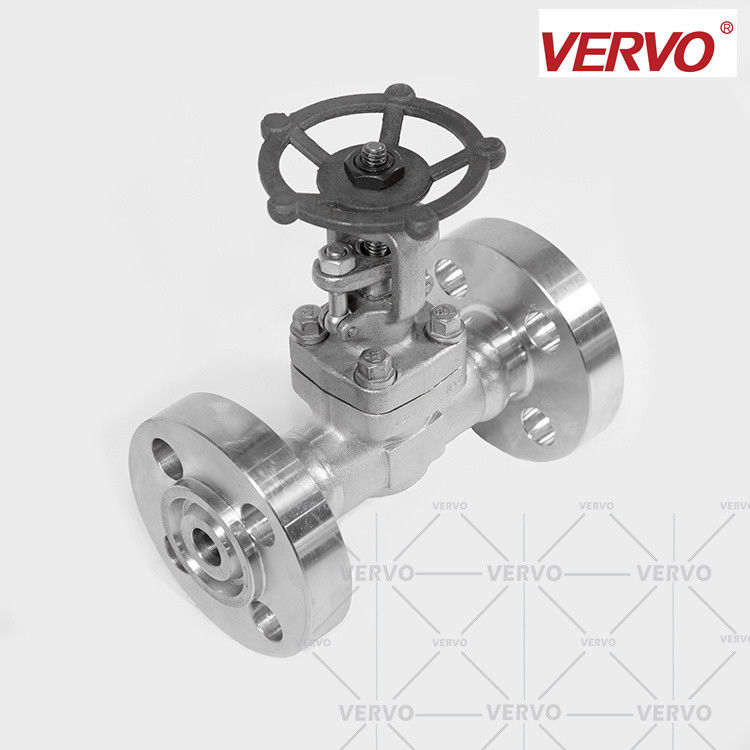

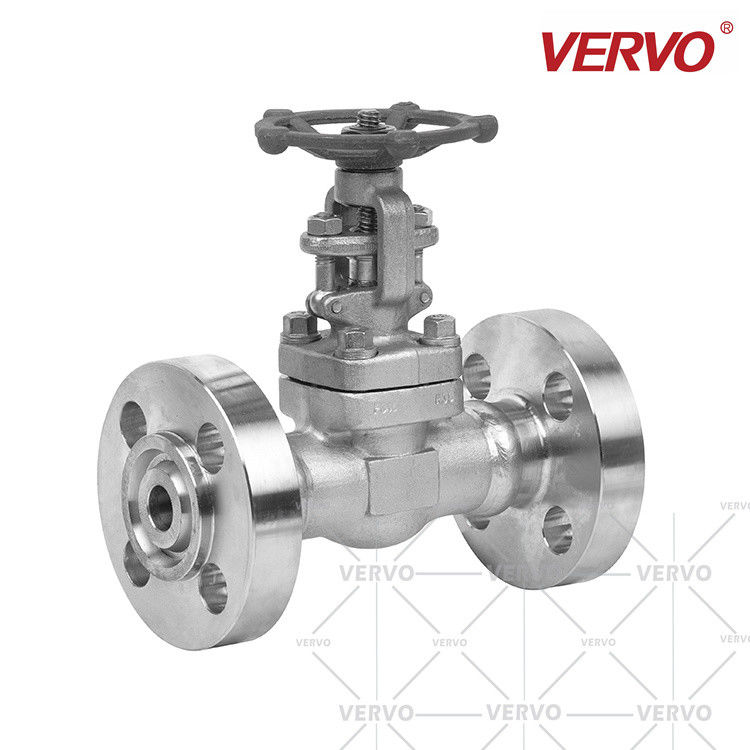

High Pressure Gate Valve Forged Steel Stainless Steel 1 Inch Dn25 1500lb Monolithic Welded Rf Flanged Forged Steel Valve
| Model number | Z41-1500LB-DN25 |
| Item | Stainless Steel F321 Gate Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Connection form | Welded RF Flanged |
| Body material | Stainless Steel A182 F321 |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
General Introduction
VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.
Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 178 | |
| CL300 | 140 | 152 | 165 | 178 | 190 | 216 | |||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | |||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Height | H | 165 | 169 | 207 | 230 | 249 | 283 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 11.6 | 20 | |
| CL300 | 4.8 | 6.7 | 10 | 13.6 | 17.2 | 24 | |||
| CL600 | 5.4 | 7.4 | 10.6 | 15 | 19.2 | 28.8 | |||
 |
|||||||||
| CL900~CL1500 | Bolt Bonnet (BB). Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
||||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | |
| Face To Face | CL90 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL1500 | |||||||||
| Handwheel Diameter | W | 125 | 125 | 160 | 160 | 180 | 180 | ||
| Height | H | 169 | 207 | 230 | 249 | 283 | 333 | ||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) | CL900 | B.B | 10.1 | 13.0 | 18.3 | 26.0 | 32.8 | 54.0 | |
| CL1500 | |||||||||
The dimension and weights are for reference only and subject to change without notice.
1.The flanged valve are defaulted by integral flange;
2.For more size or dimensional information, please contact our sales representative.
