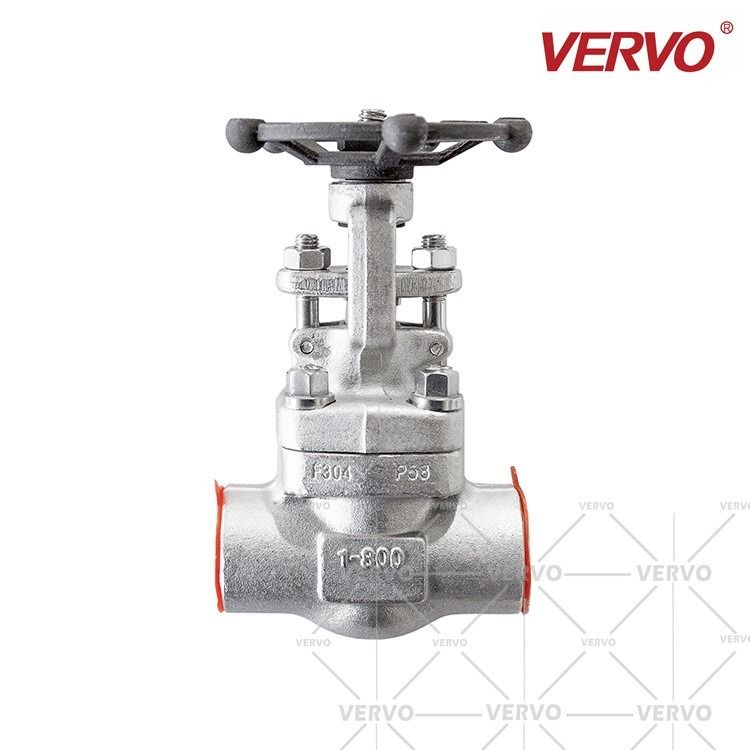

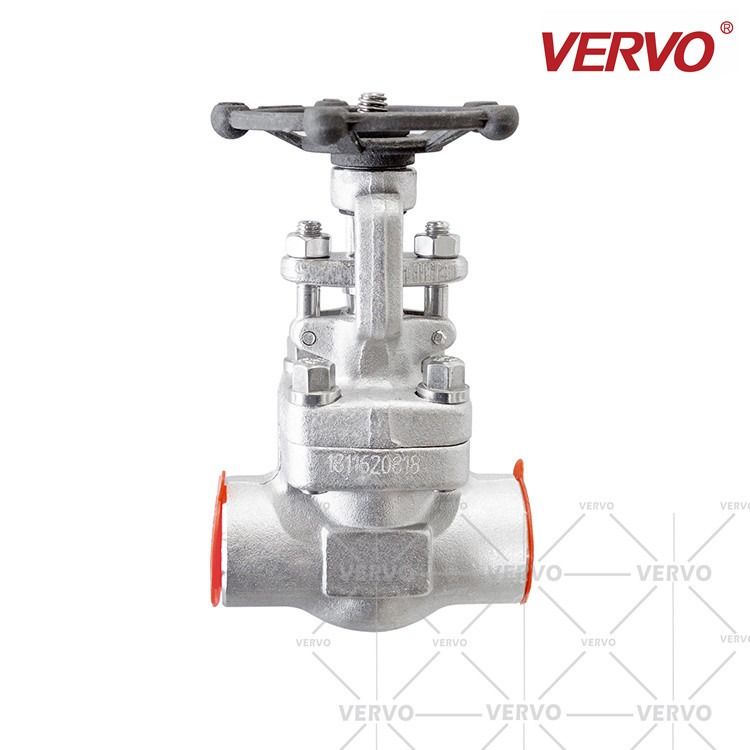

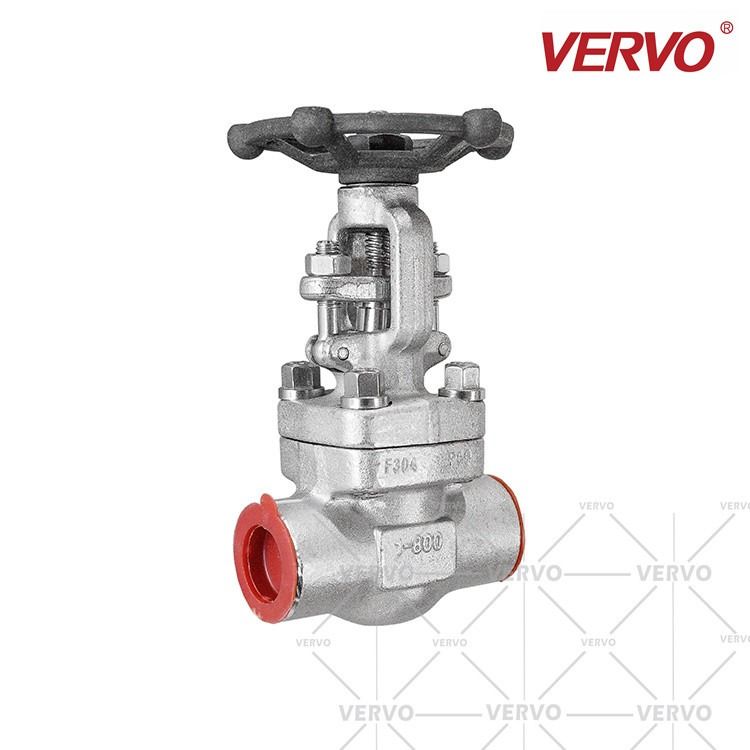

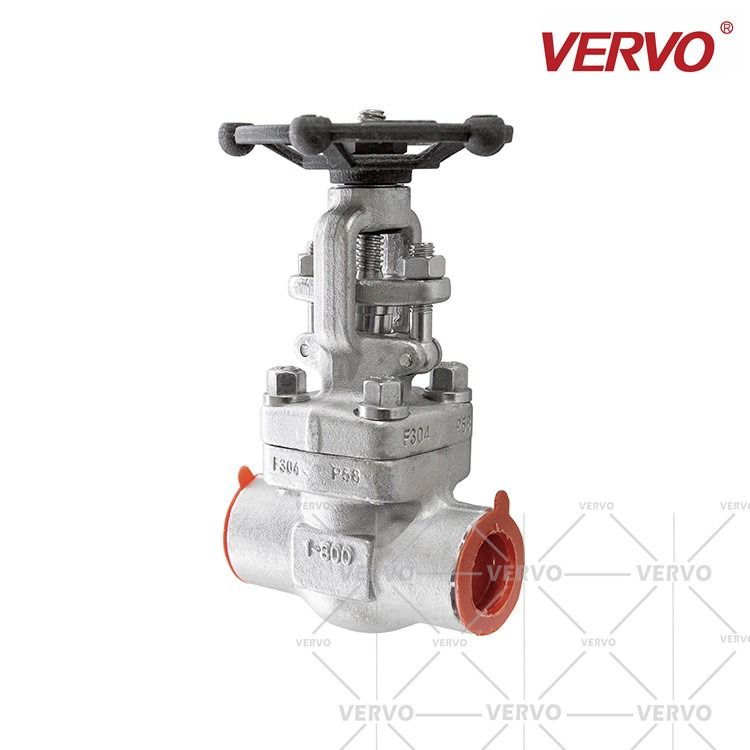

Socket Welding Gate Valve DN25 Gate valve full port gate valve stainless steel gate valve 1Inch gate valve A182 F304 BB

Socket Welding Gate Valve DN25 Gate Valve Full Port Gate Valve Stainless Steel Gate Valve 1Inch Gate Valve A182 F304 BB

Quick Detail

Forged Carbon Steel Gate Valve

1/2″-4″
150lb-2500lb
Basic Design: API 602, BS5352,ANSI B16.34
Test & Inspection: API 598

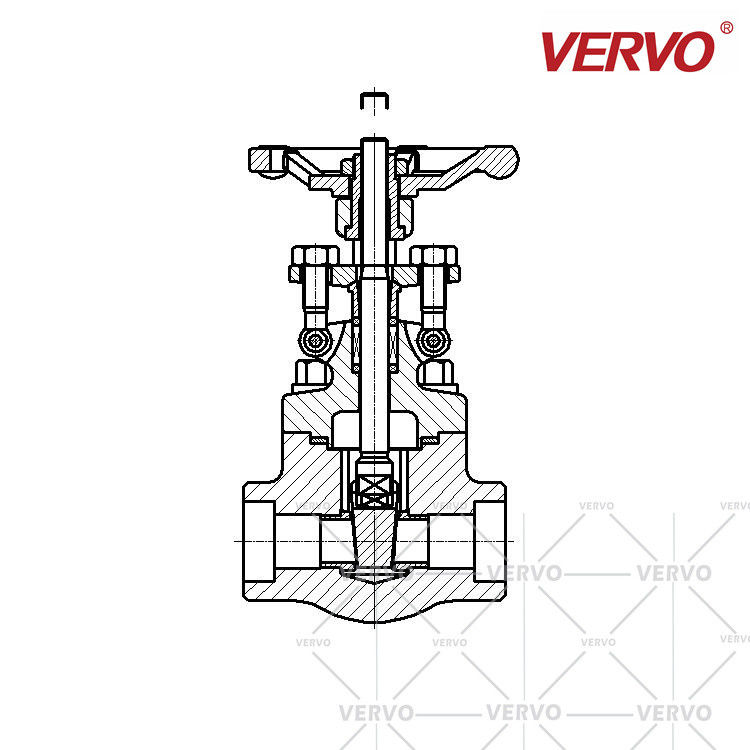

Design Features

• Outside Screw and Yoke(OS&Y)
• Two Piece self aligning packing gland
• Bolted bonnet with spiral-wound gasket
• Integral backseat

Specifications

• Basic Design: API 602, ANSI B16.34
• End to End: VERVO Standard
• Test & Inspection: API-598
• Screwed Ends (NPT) to ANSI/ASME B1.20.1
• Socket weld Ends to ASME B16.11
• Butt weld Ends to ASME B16.25
• End Flange: ANSI B16.5

Optional Features

• Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• Full Port or Regular Port
• Extended Stem or Below Seal
• Welded Bonnet or Pressure Seal Bonnet
• Locking Device upon request
• Manufacturing to NACE MR0175 upon request

Features and benefits

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.

CL800	Bolt Bonnet (BB)/Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	79	92	111	120	120	140	178
Handwheel Diameter	W	100	100	125	160	160	180	200
Height	H	165	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36	45
Weight (Kg)	B.B	2.2	2.4	4.1	5.5	7.5	10	19
	W.B	2.1	2.3	4	5.5	7.3	9.5	18.5
CL900~CL1500	Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	92	111	120	120	140	178
Handwheel Diameter	W	100	125	160	160	180	200
Height	H	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36
Weight (Kg)	B.B	2.4	4.1	6.2	6.2	8.7	12.5
	W.B	2.2	4	6	6	8.5	12
CL2500	Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L		120	120	120	140	178	178
Handwheel Diameter	W		160	160	160	180	200	200
Height	H		230	235	249	283	333	333
Flow Port Diameter	d		10.3	13.5	18	23	29	36
Weight (Kg)	W.B		6.5	6.5	6.5	9	13	13
