| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41Y-PN40-DN300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | DIN3356/BS1868/API6D | Body Material:: | Carbon Steel GS C25 |
|---|---|---|---|
| Nominal Diameter: | DN300/12INCH | Pressure: | PN40(300LB) |
| End Connection.: | Raise Flange | Face To Face: | DIN 3202 |
| Test And Inspection: | API 598 | ||
| High Light: | Din3356 Nrv Swing Check Valve,DN300 pn40 check valve,Nrv Swing Check Valve DN300 |
||

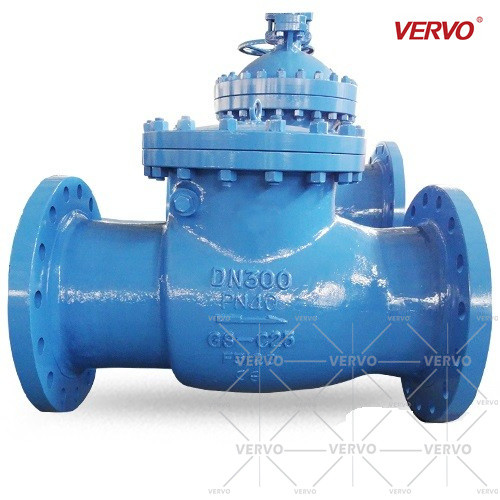

Din3356 Swing Check Valve DN300 NRV Vertical Swing Check Valve Pn40 GS C25 Full Bore 12 Cast Steel Swing Check Valve
| Item | 8 Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H44Y-300LB-8INCH |
| Port Size | 8INCH/DN200 |
| Structure type | Swing Check Valve |
| Pressure | 300LB |
| Temperature | -29-429Degree |
| Connection form | Raise Flanged |
| Material | Casting Steel Carbon Steel A216 WCB |
| Feature | Easy disassembly |
SWING CHECK VALVE
VERVO swing check valves are offered in bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO swing check valves are manufactured according to API 6D, BS 1868 Design.
PRODUCT RANGE
Sizes NPS 2 to NPS 36
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover
DESIGN STANDARD
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
ASME CLASS 300 (PN 50)
|
Size in/mm |
D |
L |
H |
Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
|
2 50 |
2 51 |
10.5 267 |
11.14 283 |
10.5 267 |
6.1 155 |
51 23 |
|
2 ½ 65 |
2 ½ 64 |
11.5 292 |
12.13 308 |
11.5 292 |
7.09 180 |
81 37 |
|
3 80 |
3 80 |
12.52 318 |
13.15 334 |
12.52 318 |
7.87 200 |
101 46 |
|
4 100 |
4 102 |
14 356 |
14.65 372 |
14 356 |
8.66 220 |
156 71 |
|
6 150 |
6 152 |
17.5 444 |
18.11 460 |
17.5 444 |
12.4 315 |
256 116 |
|
8 200 |
8 203 |
21 533 |
21.61 549 |
21 533 |
15.16 385 |
445 202 |
|
10 250 |
10 252 |
24.5 622 |
25.12 638 |
24.5 622 |
16.93 430 |
652 296 |
|
12 300 |
12 305 |
28 711 |
28.62 727 |
28 711 |
19.29 490 |
943 428 |
|
14 350 |
14 337 |
33 838 |
33.62 854 |
33 838 |
21.65 550 |
1284 583 |
|
16 400 |
15.24 387 |
34 864 |
34.65 880 |
34 864 |
24.61 625 |
1661 754 |
|
18 450 |
17 432 |
38.5 978 |
39.13 994 |
38.5 978 |
26.38 670 |
2059 935 |
|
20 500 |
19 483 |
40 1016 |
40.75 1035 |
40 1016 |
29.13 740 |
2544 1155 |
|
24 600 |
23 584 |
53 1346 |
53.86 1368 |
53 1346 |
31.89 810 |
3101 1408 |
|
28 700 |
27 686 |
59 1499 |
60 1524 |
59 1499 |
34.25 870 |
3789 1720 |
|
32 800 |
29 737 |
62.76 1594 |
63.74 1619 |
62.76 1594 |
38.98 990 |
4141 1880 |
|
36 900 |
35 889 |
82 2083 |
82.64 2099 |
82 2083 |
45.67 1160 |
2846 2200 |
