| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H44W-CL900-DN200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | BS1868/API6D | Body Material:: | A351 CF8M |
|---|---|---|---|
| Nominal Diameter: | 8Inch/DN200 | Pressure: | 900LB |
| End Connection.: | RTJ Flange | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | CF8M Swing Check Valve Class 900,Swing Check Valve Class 900 DN200,rtj valve |
||

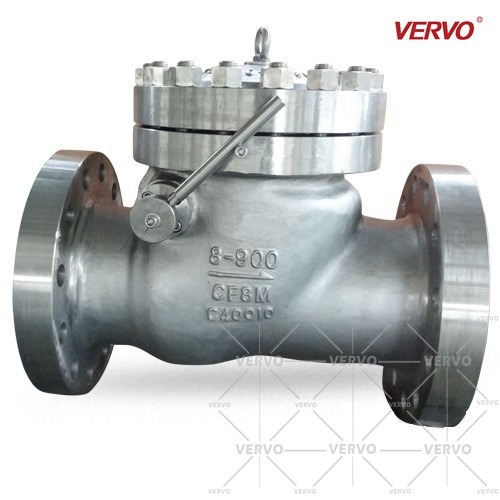

CL900 SS Swing Check Valve With Hammer 8 Swing Check Valve DN200 CF8M Casting Steel Check Valve RTJ End Check Valve
| Item | 8 Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H44W-CL900-8INCH |
| Port Size | 8INCH/DN200 |
| Structure type | Bolted Cover Swing Check Valve With Hammer |
| Pressure | 900LB |
| Temperature | -29~300Degree |
| Connection form | RTJ Flange |
| Material | Casting Steel Stainless Steel A351 CF8M |
| Feature | Easy disassembly |
SWING CHECK VALVE
VERVO swing check valves are offered in bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO swing check valves are manufactured according to API 6D, BS 1868 Design.
PRODUCT RANGE
Sizes NPS 2 to NPS 36
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover
DESIGN STANDARD
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
|
Size in/mm |
D |
L |
H |
Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
|
2 50 |
1.89 48 |
14.5 368 |
14.61 371 |
14.5 368 |
7.87 200 |
121 55 |
|
2 ½ 65 |
2.24 57 |
16.5 419 |
16.61 422 |
16.5 419 |
10.24 260 |
165 75 |
|
3 80 |
2.87 73 |
15 381 |
15.12 384 |
15 381 |
11.22 285 |
220 100 |
|
4 100 |
3.86 98 |
18 457 |
18.11 460 |
18 457 |
12.6 320 |
308 140 |
|
6 150 |
5.75 146 |
24 610 |
24.13 613 |
24 610 |
16.54 420 |
643 292 |
|
8 200 |
7.52 191 |
29 737 |
29.13 740 |
29 737 |
20.47 520 |
1211 550 |
|
10 250 |
9.37 238 |
33 838 |
33.11 841 |
33 838 |
21.26 540 |
1542 700 |
|
12 300 |
11.1 282 |
38 965 |
38.11 968 |
38 965 |
23.23 590 |
1905 865 |
|
14 350 |
12.24 311 |
40.51 1029 |
40.91 1039 |
40.51 1029 |
25.2 640 |
2753 1250 |
|
16 400 |
14 356 |
44.5 1130 |
44.88 1140 |
44.5 1130 |
27.56 700 |
3855 1750 |
|
18 450 |
15.75 400 |
48 1219 |
48.5 1232 |
48 1219 |
29.53 750 |
4515 2050 |
|
20 500 |
17.52 445 |
52 1321 |
52.52 1334 |
52 1321 |
31.89 810 |
5396 2450 |
|
24 600 |
21 533 |
61 1549 |
61.73 1568 |
61 1549 |
38.58 980 |
6057 2750 |
