| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41W-150LB-DN50 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API602/BS5352 | Body Material:: | Alloy N08020 |
|---|---|---|---|
| Nominal Diameter: | 2 Inch DN50 | Pressure: | 150LB |
| End Connection.: | Socket Welding | Face To Face: | Factory STD |
| Test And Inspection: | API 598 | ||
| High Light: | Piston Lift Forged Check Valve,Forged Check Valve Non Return Valve,forged lift check valve Dn50 |
||

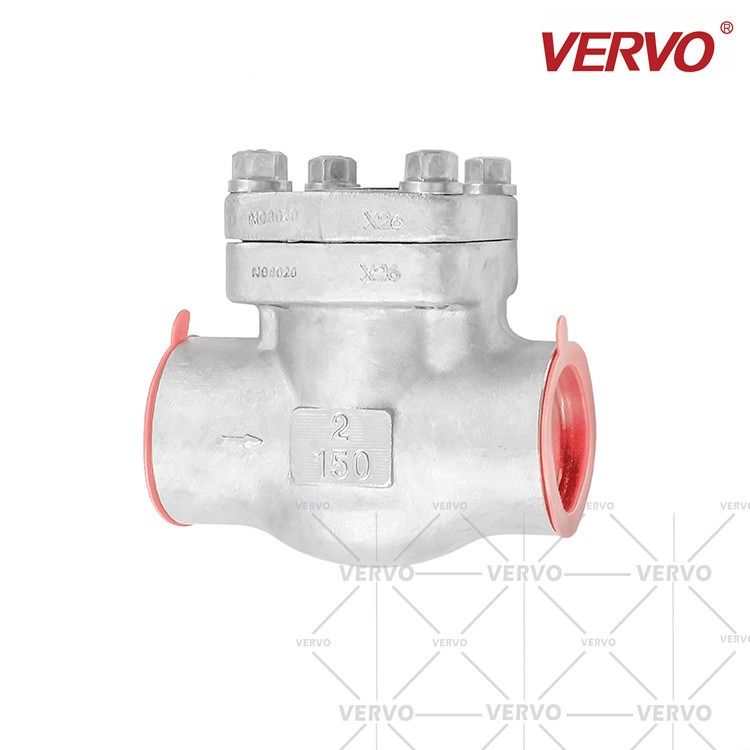

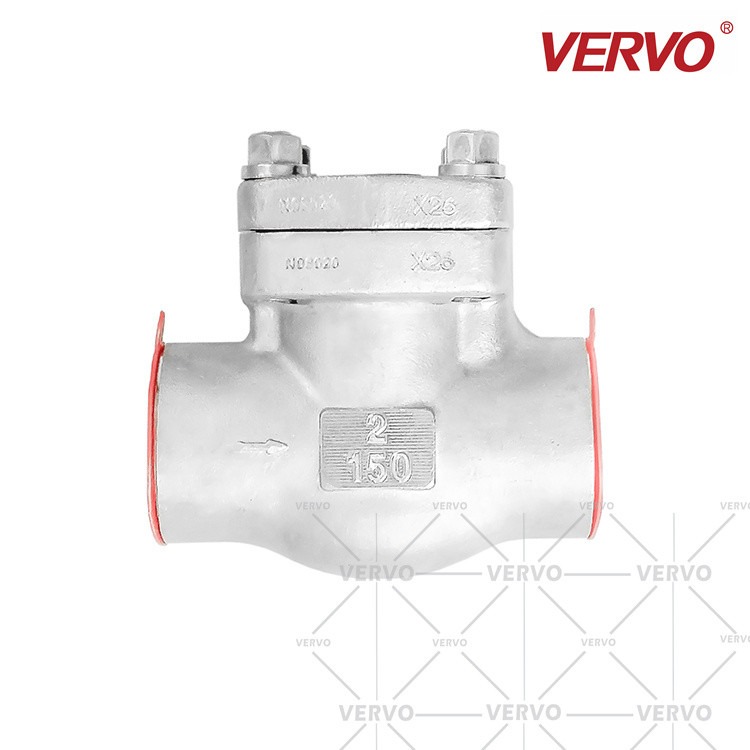

Piston Lift Forged Check Valve Non Return Valve 2 Inch Dn50 150lb Alloy N08020 SW Full Port High Pressure Check Valve
| Model number | H61Y-150LB-DN50 |
| Item | Alloy steel Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,CE,TS,API |
| Port Size | 2'' |
| Connection form | Socket welding |
| Body material | Alloy Steel N08020 |
| Structure type | Piston Check Valve |
| Feature | Easy disassembly and assembly |
Forged Steel Check Valve
VERVO forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel check valves are manufactured according to API 602 Design.
PRODUCT RANGE
Sizes NPS 1/2 to NPS 4
Class 800 to Class 2500
MATERIALS
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
SW, NPT, RF or BW
Outside Screw & Yoke (OS&Y)
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
DESIGN STANDARD
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

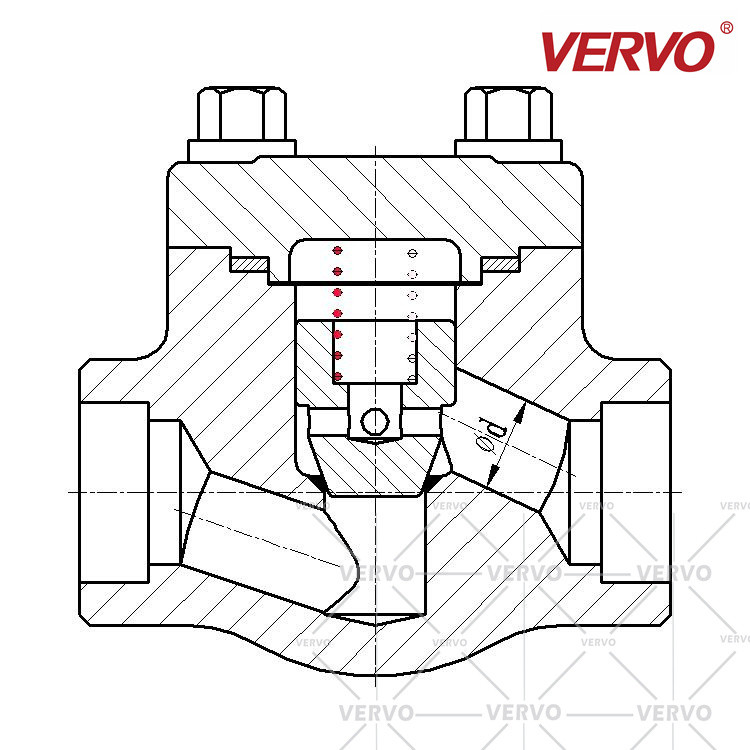

DIMENSIONS AND WEIGHTS (Check Valve - Lift Type )
DIMENSIONS AND WEIGHTS (Check Valve - Lift Type )
| CL800 | Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP)/Full Port (FP) Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 79 | 92 | 111 | 120 | 152 | 172 | |
| Height | H | 55 | 55 | 65 | 80 | 85 | 105 | |
| Flow Port Diameter |
d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | B.B | 1.2 | 1.5 | 2.1 | 3.5 | 4.8 | 7.6 | |
| W.B | 1.1 | 1.3 | 2 | 3.3 | 4.6 | 7.4 | ||
 |
||||||||
| CL900 CL1500 | Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP)/Full Port (FP) Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 92 | 111 | 120 | 152 | 172 | 220 | |
| Height | H | 55 | 65 | 80 | 85 | 105 | 115 | |
| Flow Port Diameter |
d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | B.B | 1.5 | 2.1 | 3.5 | 4.8 | 7.6 | 12.5 | |
| W.B | 1.3 | 2 | 3.3 | 4.6 | 7.4 | 12.1 | ||
 |
||||||||
| CL2500 | Welding Cover (WC), Reduce Port (RP)/Full Port (FP) Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) |
R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Face To Face | L | 120 | 120 | 152 | 172 | 220 | 220 | |
| Height | H | 80 | 80 | 85 | 105 | 115 | 115 | |
| Flow Port Diameter |
d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) |
W.B | 3.5 | 3.5 | 4.8 | 7.6 | 12.5 | 12.5 | |
