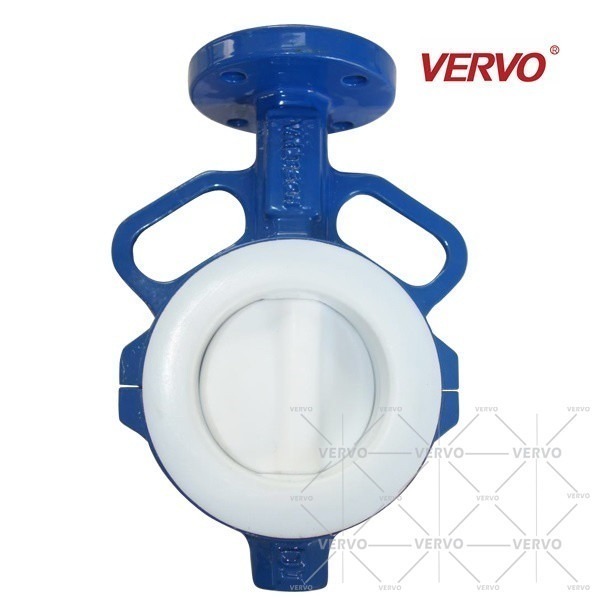

Name: Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest
Brand: VERVO
SKU: BV47F

Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest

VERVO butterfly valves are offered in Triple Offset, Concentric Lining design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO butterfly valves are manufactured according to API 609 Design.

PTFE lined Valve Basic Character

Lockable Lever
Site maintenance
Ease of automation
Positive tight shut-off
Optional top flanges to ISO 5211
Qualified for both gaseous and liquid services
Broad line of body and trim materials for a variety of medium service.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202

Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Satinless Steel, Alloy Steel, duplex steel and ect.
Temperature: -20 Deg. C to 150 Deg.C
Pressure Ratings: ANSI 150#, PN10, PN16
Size Ranges: 2″ to 24″-50mm to 600mm (Larger sizes upon request)
Body Lining: PTFE, FEP, PFA and etc.
Ends Connections: Wafer, Lugged, Double Flanged
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic

PN10&PN16&150LB&10K

NPS	DN	L	150LB	PN16	PN10	10K	150 LB	PN16	PN10	10 K	H1	H2	H3	*SS/G**	K	D3	D4	n-<Pd1
NPS	DN	L	D1A	D1B	D1C	D1D	n-①d	n-①d	n-①d	n-①d	H1	H2	H3	*SS/G**	K	D3	D4	n-<Pd1
1.1/2	40	42	98.4	110	110	105	4-19	4-18	4-18	4-16	67	133	14	9*9/12.6	3	65/90	50/70	4-7/10
2	50	43	120.7	125	125	120	4-19	4-18	4-18	4-16	67	133	14	9*9/12.6	3	65/90	50/70	4-7/10
2.1/2	65	46	139.7	145	145	140	4-19	8-18	8-18	4-16	75	137	14	9*9/12.6	3	65/90	50/70	4-7/10
3	80	46	152.4	160	160	150	4-19	8-18	8-18	8-16	82	159	14	9*9/12.6	3	65/90	50/70	4-7/10
4	100	52	190.5	180	180	175	8-19	8-18	8-18	8-16	105	171	18	11*11/15.7	5	90	70	4-10
5	125	55	215.9	210	210	210	8-22	8-18	8-18	8-20	118	189	22	14*14/18.9	5	90	70	4-10
6	150	55	241.3	240	240	240	8-22	8-22	8-22	8-20	135	209	22	14*14/18.9	5	90	70	4-10
8	200	60	298.5	295	295	290	8-22	12-22	8-22	12-20	165	258	24	17*17/22	5	125	102	4-12
10	250	69	362	355	350	355	12-26	12-26	12-22	12-22	200	299	30	22*22/28.4	8	125	102	4-12
12	300	76	431.8	410	400	400	12-26	12-26	12-22	16-22	230	337	30	22*22/31.6	8	150	125	4-14
14	350	78	476.3	470	460	445	12-29	16-26	16-22	16-22	274	350	45	22*22/31.6	8	150	125	4-14
16	400	86/102	539.8	525	515	510	12-29	16-30	16-26	16-24	304	405	50	27*27/33.2	10	175	140	4-18
18	450	105/114	577.9	585	565	565	16-32	20-30	20-26	20-24	335	409	50	27*27/38	10	175	140	4-22
20	500	130	635	650	620	620	20-32	20-33	20-26	20-24	368	460	60	36*36/41.1	10	210	165	4-22
24	600	153	749.3	770	725	730	20-33	20-36	20-30	24-30	428	516	70	36*36/50.6	16	210	165	4-22
28	700	163	863.6	840	840	840	28-35	24-36	24-30	24-30	520	648	80	46*46/62	18	300	254	8-18
32	800	190	977.9	950	950	850	28-39	24-39	24-33	28-30	580	668	80	46*46/62	18	300	254	8-18
36	900	203	1085.8	1050	1050	1050	32-39	28-39	28-33	28-30	656	720	118	55*55/75	20	300	254	8-18
40	1000	216	1200.2	1170	1160	1160	36-39	28-42	28-36	28-36	722	800	148	55*55/85	22	300	254	8-18

Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest 1

DN	40	50	65	80	100	125	150	200
H1	67	67	75	82	105	118	135	165
H	177	265	287	302	350	372	398	420
A	115	170	170	170	215	215	215	355

Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest 2

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	260	308	330	345	383	405	431	584	651	712	804	920	983	1048	1199	1470	1603	1741	1887
A	208	208	208	208	208	208	208	299	299	294	294	361	361	361	417	485	485	534	534
B	174	174	174	174	174	174	174	292	292	308	308	426	426	426	479	578	578	650	650
L	42	42	45	45	52	54	54	59	66	77	77	86	105	130	151	163	190	203	216

Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest 3

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	241	289	325	360	398	452	478	570	657	746	867	935	1013	1230	1429	1668	1847	1976	2122
A	130	130	140	140	186	254	254	296	384	384	501	533	589	589	638	1330	1380	1860	1860
B	59	59	70	70	91	120	120	137	173	173	208	224	274	274	322	320	360	440	440
L	42	42	45	45	52	54	54	59	66	77	77	86	105	130	151	163	190	203	216

Wafer Style PTFE Lined Butterfly Valve Ggg40 Ptfe Lined DN80 PN10 Butterfly Valve With Soft Backrest 4

DN	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
H1	67	67	75	82	105	118	135	165	200	230	274	304	335	368	428	520	580	656	722
H	284	332	354	400	438	501	521	593	660	747	839	879	1288	1353	1504	1775	1908	2104	2250
A	165	165	212	212	212	259	259	259	259	259	284	284	644	644	644	803	803	887	1015
B	140	140	154	154	154	186	186	186	186	186	193	193	495	495	495	671	671	693	693
L	42	42	45	45	52	54	54	59	66	77	77	86	105	130	151	163	190	203	216
