| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q11F-1000PSI |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 2 Piece Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW | ||
| High Light: | Side Entry Floating Ball Valve 316ss,Floating Ball Valve Fire Safe DN25,internal thread ball valve dn25 |
||

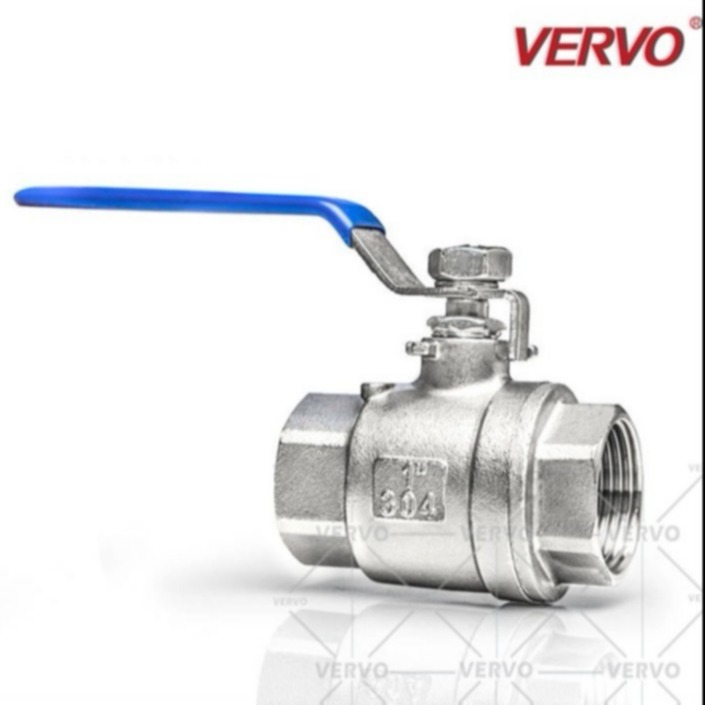

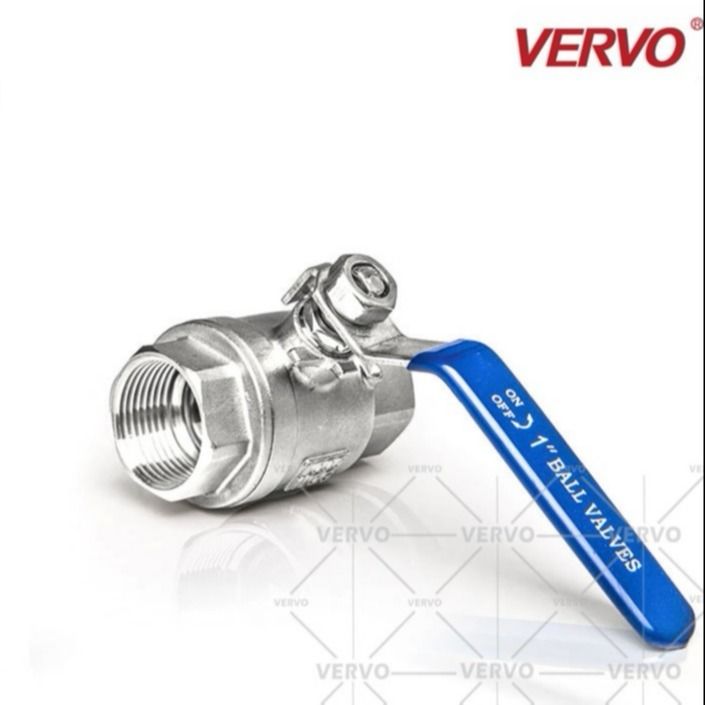

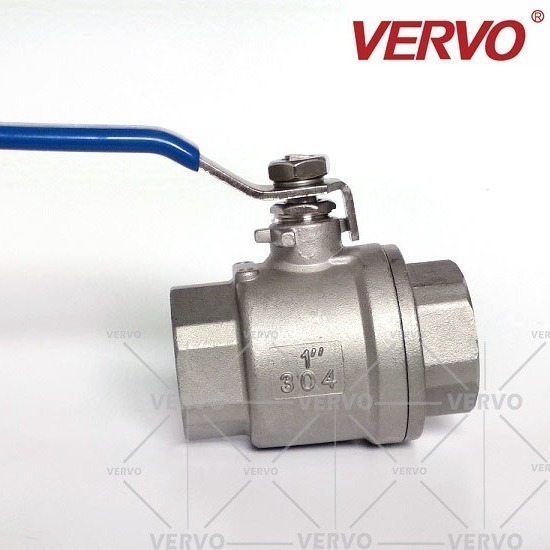

DN25 Stainless Steel Internal Thread Ball Valve 201 304 316 2 Piece Ball Valve Side Entry Anti-Static Device Fire Safe
Function Description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Application:
Applicable Temperature: -20ºC ~ 150 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: 1000WOG/2000WOG
Size Range: 1/4" ~ 4"(DN8-DN100)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Ball Seat | PTFE/RPTFE/PPL | ||
| 3 | Ball | 316 | 304 | 201 |
| 4 | Body Gasket | PTFE | ||
| 5 | Cap | CF8M | CF8 | WCB |
| 6 | Stem | 316 | 304 | 201 |
| 7 | Thrust Washer | PTFE | ||
| 8 | Stem Packing | PTFE | ||
| 9 | Gland Nut | 304 | ||
| 10 | Handle | 201 | ||
| 11 | Spring Washer | 304 | ||
| 12 | Nut | 304 | ||
| 13 | Locking Device | 201 | ||
| 14 | Handle Cover | Plastic | ||
