| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q41F-DN25-150LB |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API6D | Body Material:: | A351 CF8 |
|---|---|---|---|
| Nominal Diameter: | 1 Inch/DN25/25MM | Pressure: | CL150 |
| End Connection.: | FLANGE RF | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | DN25 Flanged Ball Valve,Pneumatic Actuated Flanged Ball Valve,CL150 Flanged Ball Valve |
||

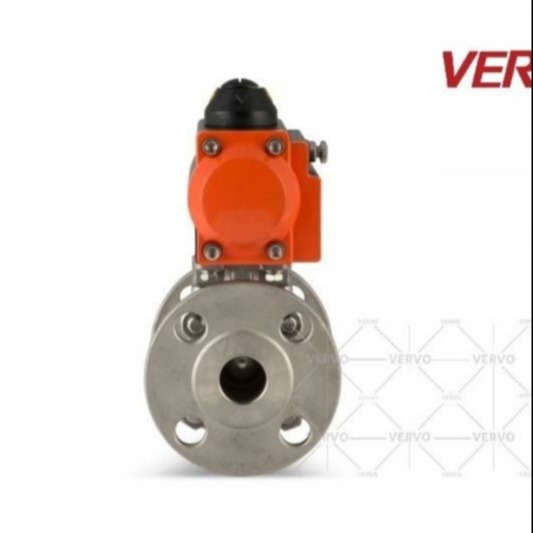

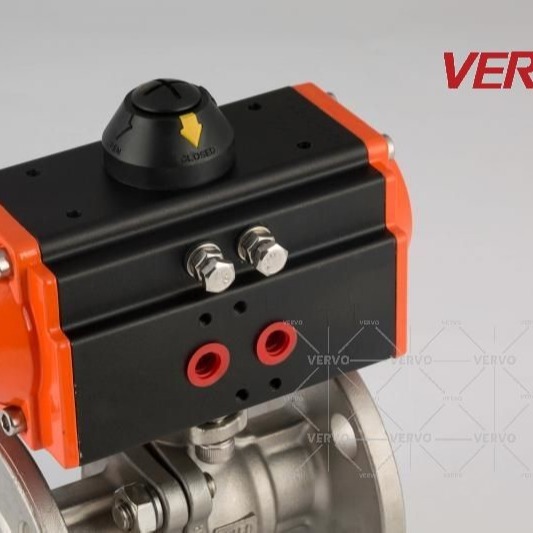

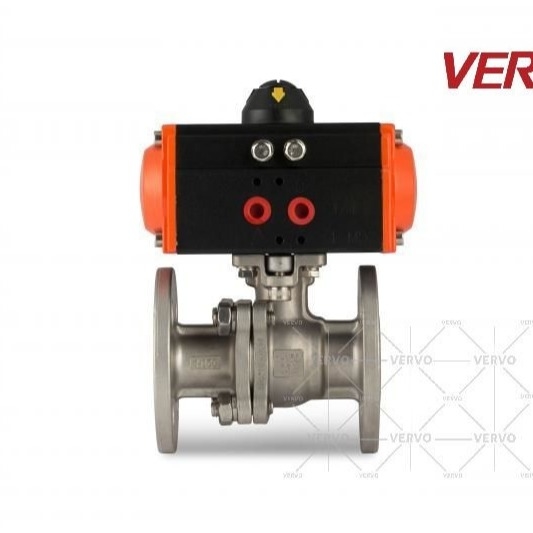

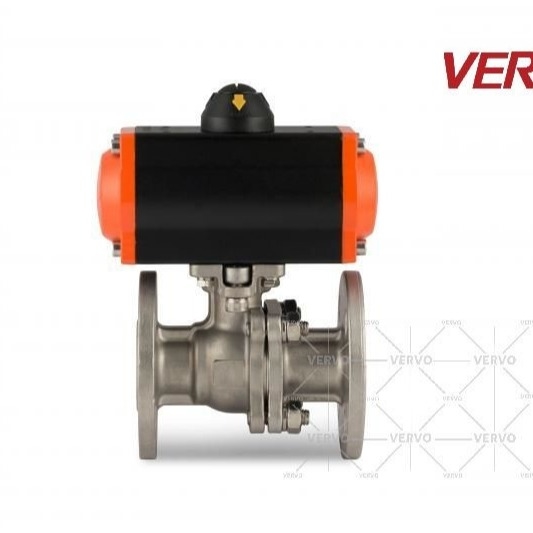

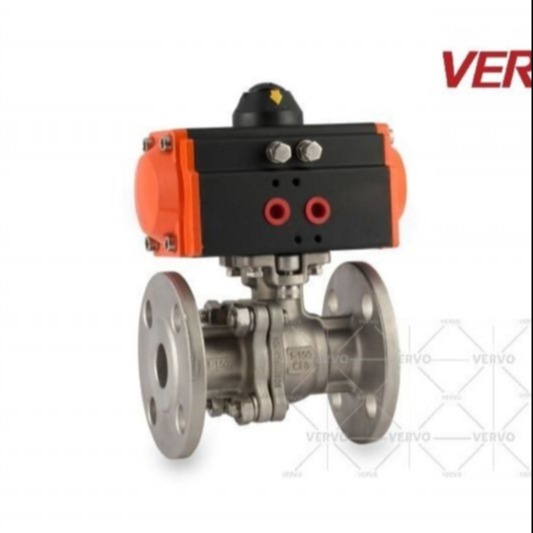

Stainless Steel Pneumatic Actuated Ball Valve Flange Ball Valve Type Side Entry Ball Valve 25mm Ball Valve DN25 CF8
Design standard
| Details | |||
| Type: | Pneumatic Valve | Model Number: | PSFT |
| Certification: | CE,RoHS,ISO 9001, | Action | Single-acting, Double-acting |
| Body Material | Stainless Steel | Temperature of Media: | -10-180℃ |
| Sealing Material | PTFE | Pressure: | 0.1-6.4MPa |
| Brand Name: | VERVO | Media | Water, Air, Oil,Steam,etc |
| Power: | Pneumatic Actuator | Structure: | Ball |
| Size: | DN15-DN300 (1/2”-10”) | Connection: | Flange |
OEM or Customization is available.
FEATURES:
- Features: Long Service Life, Eco-Friendly, Easy Installation, etc
- Actuator Type: Spring Return(Single Acting) and Double Acting
- Valve Type: 2-Ways Air Actuator Ball Valve & 3-Ways Air Actuator Ball Valve (T Type and L Type)
- Rotation: Quarter-turn
- Material: Stainless Steel and Plastic
- Connection Type: Threaded, Flange, Tri Clamp and Welding
- Suitable Medium: Water, Oil, Air, Gas, etc
FEATURES:
Double acting standard control mode, single acting is available, 304 or 316 stainless steel body construction, 2.5 to 8 bar input air pressure, minimum 1/2 inch flanged connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures
SEALS FEATURES:
- NBR : -10°C...+80°C
- EPDM : -10°C...+130°C
- VİTON : -10°C...+160°C
- PTFE : -10°C...+160°C
- RUBY : -10°C...+160°C
